REAR TRACTION MOTOR COMPONENTS

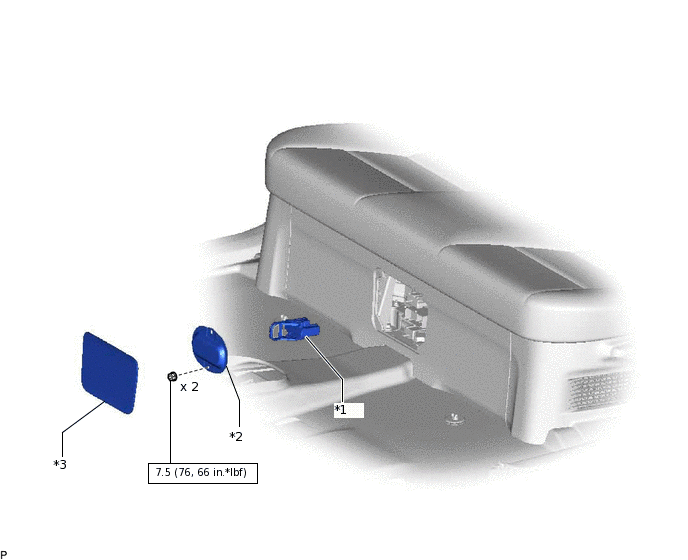

ILLUSTRATION
*1 |
SERVICE PLUG GRIP |
*2 |
HYBRID BATTERY SERVICE PLUG COVER |
*3 |
BATTERY SERVICE HOLE COVER |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

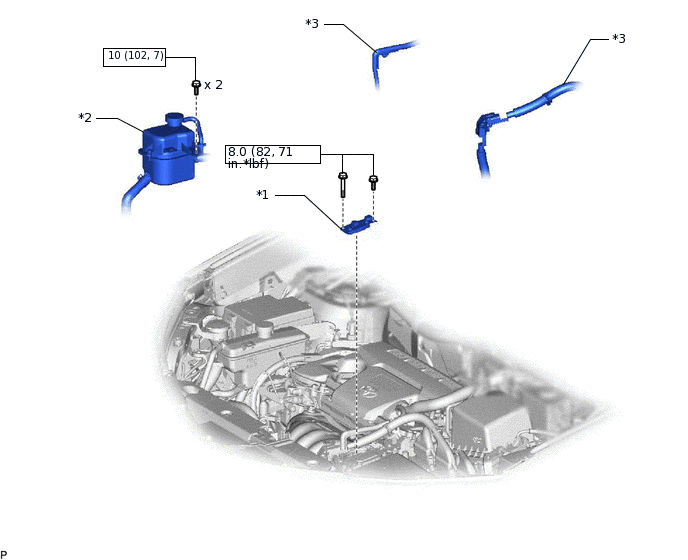

ILLUSTRATION
*1 |
CONNECTOR COVER ASSEMBLY |
*2 |
INVERTER RESERVE TANK ASSEMBLY |
*3 |
WIRE HARNESS |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

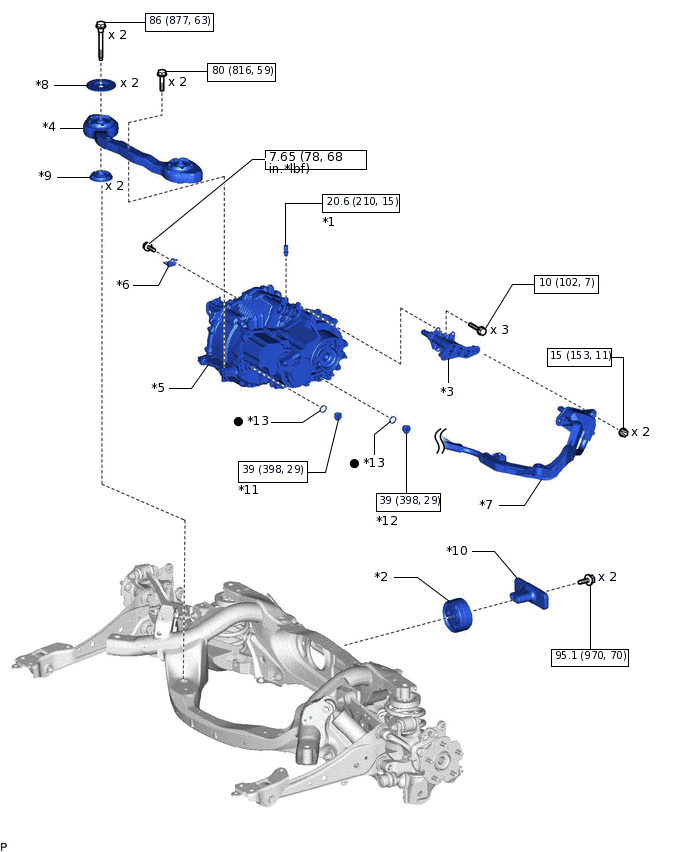

ILLUSTRATION
*1 |
BREATHER PLUG |
*2 |
DIFFERENTIAL MOUNT CUSHION |
*3 |
EXTENSION WIRE ASSEMBLY |
*4 |
FRONT DIFFERENTIAL SUPPORT ASSEMBLY |
*5 |
REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY |
*6 |
WIRE HARNESS CLAMP BRACKET |
*7 |
NO. 2 FRAME WIRE |
*8 |
UPPER DIFFERENTIAL MOUNT STOPPER |
*9 |
LOWER DIFFERENTIAL MOUNT STOPPER |
*10 |
DIFFERENTIAL DYNAMIC DAMPER |
*11 |
FILLER PLUG |
*12 |
DRAIN PLUG |
*13 |
GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
