FUEL TANK(w/ Canister Pump Module) INSTALLATION

PROCEDURE

  1. INSTALL NO. 4 FUEL TUBE CLAMP

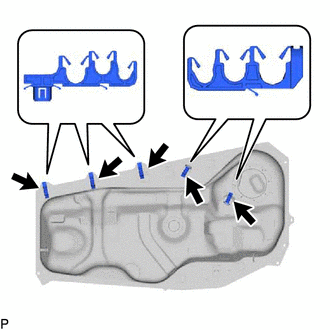

    1. A373832

      Install the 5 No. 4 fuel tube clamps to the fuel tank assembly as shown in the illustration.

  2. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY

    1. Connect the 5 clamps and install the fuel tank main tube sub-assembly to the 5 No. 4 fuel tube clamps.

  3. INSTALL FUEL SENDER GAUGE ASSEMBLY

    Click here

  4. INSTALL FUEL SUCTION TUBE ASSEMBLY

    Click here

  5. INSTALL FUEL TANK VENT TUBE SET PLATE

    Click here

  6. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

    Click here

  7. INSTALL FUEL TANK ASSEMBLY

    1. Set the fuel tank assembly on an engine lifter with attachments.

    2. Raise the engine lifter.

      Note:

      Be careful not to cut the wiring.

    3. Install the wire harness clamp to the 2 No. 4 fuel tube clamps.

    4. Connect the fuel pump connector and fuel sender gauge assembly connector.

    5. Connect the fuel tank breather tube sub-assembly to the fuel tank assembly.

      Click here

    6. Install the No. 2 fuel tank band with the 2 bolts.

      45 N*m

      459 kgf*cm

      33 ft.*lbf

    7. Install the No. 1 fuel tank band with the 2 bolts.

      45 N*m

      459 kgf*cm

      33 ft.*lbf

    8. Connect the 4 wire harness clamps to the 3 No. 4 fuel tube clamps and the bracket on the vehicle side.

  8. CONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY

    1. Connect the fuel tank vent hose sub-assembly and clamp to the No. 2 fuel tank band.

  9. CONNECT FUEL TANK TO FILLER PIPE HOSE

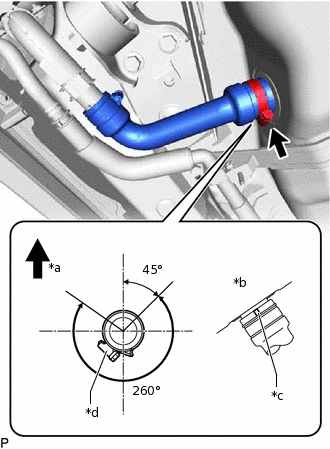

    1. A373833C01

      *a

      Top

      *b

      Underside of Fuel Tank Assembly

      *c

      Protrusion

      *d

      Hose Clamp

      Connect the fuel tank to filler pipe hose to the fuel tank assembly, then tighten the hose clamp.

      Tip:

      Make sure that the fuel tank to filler pipe hose and hose clamp are oriented as shown in the illustration.

  10. INSTALL FUEL HOSE PROTECTOR

    1. Attach the claw, then install the fuel hose protector to the fuel tank assembly and fuel tank to filler pipe hose.

  11. CONNECT FUEL TANK TO CANISTER TUBE SUB-ASSEMBLY

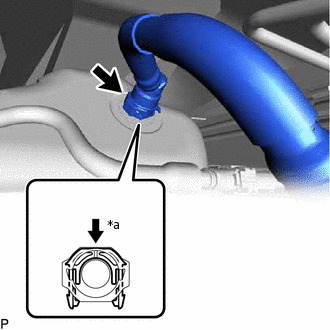

    1. A373834C01

      *a

      Push

      Connect the fuel tank to canister tube sub-assembly.

      1. Push the hose into the port and push the retainer to lock it.

        Note:

        • Check for damage or foreign objects on the connected part.

        • After connecting, check that the air inlet line hose and the valve are securely connected by pulling on them.

  12. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

    1. Connect the fuel tank main tube sub-assembly to the fuel pipe.

      Click here

  13. INSTALL NO. 1 FLOOR UNDER COVER

    1. Attach the clamp and install the No. 1 floor under cover with the 2 nuts.

  14. CONNECT NO. 2 PARKING BRAKE CABLE ASSEMBLY

    1. Connect the No. 2 parking brake cable assembly to the body with the 2 bolts.

      6.0 N*m

      61 kgf*cm

      53 in.*lbf

  15. INSTALL NO. 1 FUEL TANK PROTECTOR

    1. Install the No. 1 fuel tank protector with the clip.

    2. Attach the 2 clips and install the No. 1 fuel tank protector with the nut.

      8.0 N*m

      82 kgf*cm

      71 in.*lbf

  16. INSTALL FRONT FLOOR COVER

    1. Install the front floor cover with the bolt and nut.

      for bolt

      12 N*m

      122 kgf*cm

      9 ft.*lbf

      for nut

      6.0 N*m

      61 kgf*cm

      53 in.*lbf

    2. Attach the 5 clips.

  17. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  18. INSPECT FOR FUEL LEAK

    Click here
