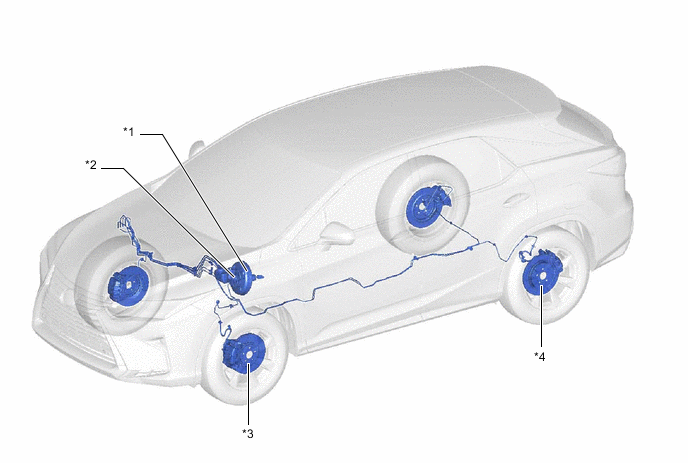

BRAKE SYSTEM
| *1 | Brake Booster Assembly
|
*2 | Brake Master Cylinder Sub-assembly |
| *3 | Front Brake | *4 | Rear Brake |
*: The vacuum warning switch assembly or vacuum sensor assembly is provided depending on the model.
| *1 | Brake Booster Assembly
|
*2 | Brake Master Cylinder Sub-assembly |
| *3 | Front Brake | *4 | Rear Brake |
*: The vacuum warning switch assembly or vacuum sensor assembly is provided depending on the model.
