DYNAMIC RADAR CRUISE CONTROL SYSTEM


  1. OPERATION

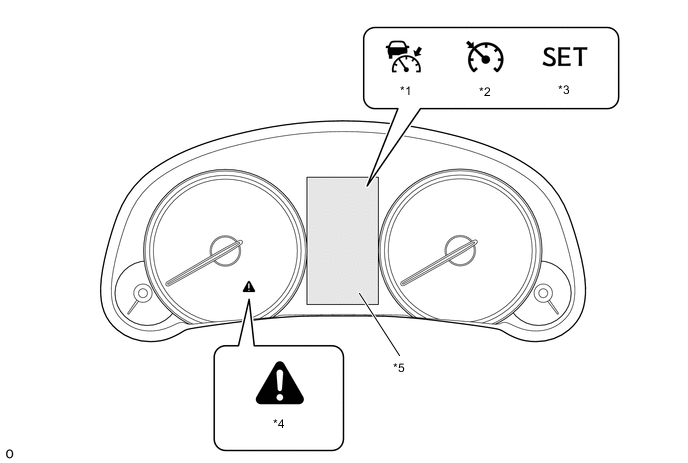

    1. The combination meter assembly has a master warning light, cruise control indicator (constant speed control mode), cruise control indicator (vehicle-to-vehicle distance control mode), cruise control SET indicator and multi-information display to provide warnings and messages regarding the dynamic radar cruise control system.

      B002FCBC01
      *1 Cruise Control Indicator (Vehicle-to-vehicle Distance Control Mode) *2 Cruise Control Indicator (Constant Speed Control Mode)
      *3 Cruise Control SET Indicator *4 Master Warning Light
      *5 Multi-information Display - -

    2. The multi-information display displays the set vehicle speed, vehicle ahead mark, and warning message.

      Vehicle-to-vehicle Distance Control Mode
      Condition Multi-information Display*1 Cruise Control Indicator (Vehicle-to-vehicle Distance Control Mode) Cruise Control SET Indicator

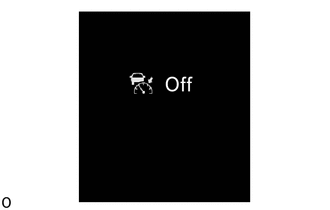

      System OFF B002FKL - -
      Precaution Display (Displayed for 6 sec. after cruise control main switch has been turned on.)

      Radar Cruise

      Active

      Please Pay

      Attention to

      Other Vehicles

      		 Illuminates -
      Set Standby RADAR READY Illuminates -

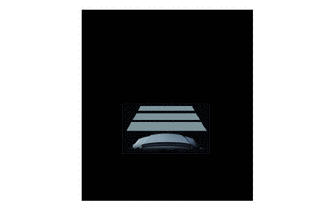

      B002FA8 Illuminates -

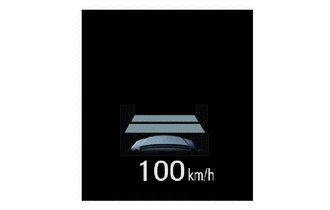

      Under Constant Speed Control (No Vehicle Ahead, Middle) B002FVB Illuminates Illuminates

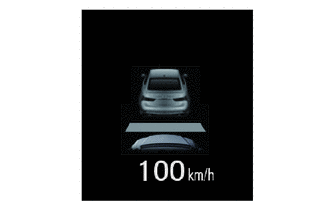

      Under Follow-up Control (Vehicle Ahead, Short) B002F7E Illuminates Illuminates
      Under Follow-up Control (The vehicle ahead moves away when the vehicle is being driven at less than approximately 40 km/h [25 mph].)*2

      CRUISE NOT AVAILABLE

      No Preceding Vehicles

      		 - -

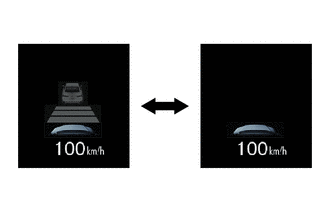

      Approach warning (Vehicle Ahead) B002FNT Illuminates Illuminates
      The vehicle-to-vehicle distance mark and vehicle ahead mark blinks and the pre-collision city buzzer sounds.

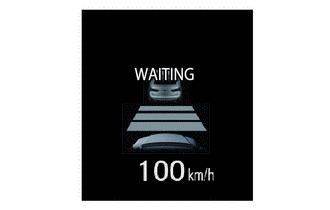

      Stop Retention Control*2 B002FLH Illuminates Illuminates

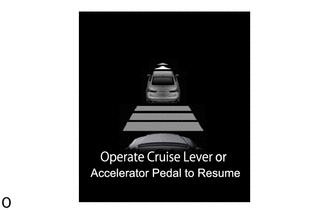

      Start Control*2 B002FEX Illuminates Illuminates

      *1: These illustrations are examples.

      *2: Models with full-speed range following function

      Constant Speed Control Mode
      Condition Multi-information Display* Cruise Control Indicator (Constant Speed Control Mode) Cruise Control SET Indicator
      System OFF B002FKL - -
      Set Standby Not Display Illuminates -

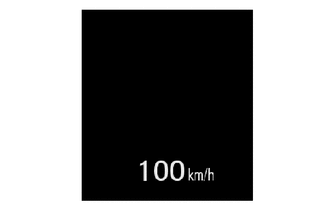

      Being Controlled B002F73 Illuminates Illuminates

      *: These illustrations are examples.

      Warning Messages
      Condition Multi-information Display Cruise Control Indicator Master Warning Light
      The millimeter wave radar sensor assembly or the emblem is dirty

      Radar Cruise

      Control

      Unavailable

      Clean Sensor

      		 - Illuminates

      When any of the following conditions is met:


      • Weather conditions are poor

      • A malfunction occurs in the forward recognition camera

      • The beam axis of the millimeter wave radar sensor assembly is being aligned

      • The forward recognition camera is temporarily unavailable

      • Brake control by the dynamic radar cruise control system is temporarily unavailable

      Radar Cruise

      Control

      Unavailable

      		 - Illuminates
      System Malfunction

      Cruise Control

      Malfunction

      Visit Your Dealer

      		 - Illuminates
      System Warning During Stop Retention Control*

      Cruise Control

      Fault

      Press Brake to

      Deactivate

      Visit Your Dealer

      		 - Illuminates
      The pre-collision city buzzer (skid control buzzer) sounds until the brake pedal is depressed.

      When any problem occurs during stop retention control, or any of the following conditions is met:*


      • The vehicle is driving on a steep hill

      • No preceding vehicle is detected.

      Radar Cruise

      Control

      Unavailable

      Depress Brake to

      Resume Driving

      		 - -
      The pre-collision city buzzer sounds until the brake pedal is depressed.

      *: Models with full-speed range following function
