RELAY ON-VEHICLE INSPECTION

PROCEDURE

  1. CHECK STOP LIGHT CONTROL RELAY (STOP LP Relay)

    1. Remove the stop light control relay (STOP LP Relay) from the engine room relay block.

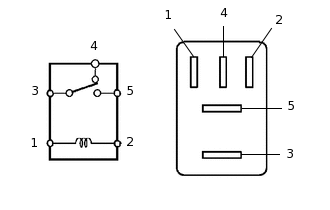

    2. C260229N01

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      3 - 4

      Battery positive (+) voltage not applied to terminal 1 and battery negative (-) voltage applied to terminal 2

      Below 1 Ω

      Battery positive (+) voltage applied to terminal 1 and battery negative (-) voltage to terminal 2

      10 kΩ or higher

      3 - 5

      Battery positive (+) voltage not applied to terminal 1 and battery negative (-) voltage applied to terminal 2

      10 kΩ or higher

      Battery positive (+) voltage applied to terminal 1 and battery negative (-) voltage to terminal 2

      Below 1 Ω

      If the result is not as specified, replace the stop light control relay (STOP LP Relay).

    3. Install the stop light control relay (STOP LP Relay).
