ION GENERATOR COMPONENTS

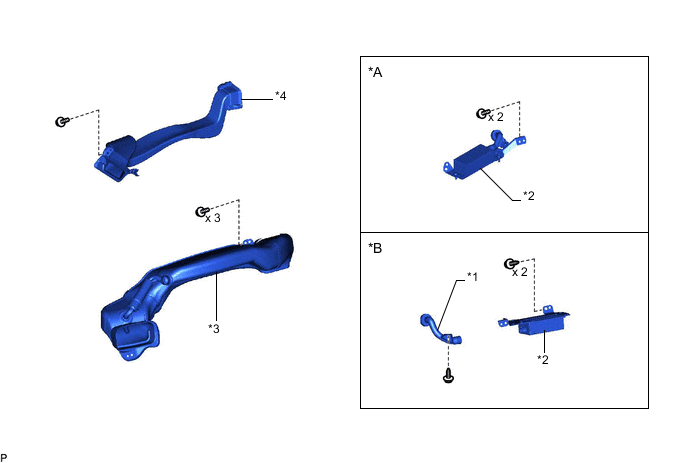

ILLUSTRATION
| *A | for LHD | *B | for RHD |
| *1 | AIR DUCT SUB-ASSEMBLY | *2 | ION GENERATOR WITH BRACKET |
| *3 | NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY | *4 | NO. 1 SIDE DEFROSTER NOZZLE DUCT |
ILLUSTRATION
| *A | for LHD | - | - |
| *1 | AIR DUCT SUB-ASSEMBLY | *2 | ION GENERATOR SUB-ASSEMBLY |
| *3 | NO. 1 ION GENERATOR BRACKET | - | - |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | ION GENERATOR SUB-ASSEMBLY | *2 | NO. 1 ION GENERATOR BRACKET |
