SPEED LIMITER SYSTEM TERMINALS OF ECM


  1. CHECK ECM

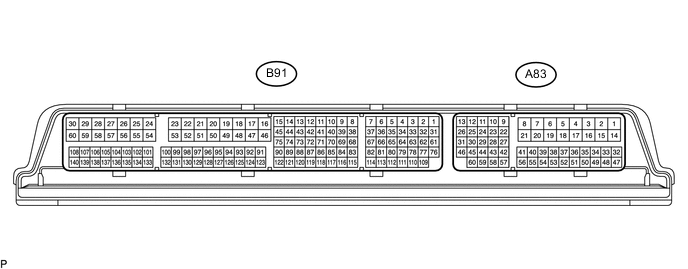

    A004SVFE02

    1. Disconnect the A83 ECM connectors.

    2. Measure the resistance and voltage according to the value(s) in the table below.

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A83-15 (BATT) - Body ground B - Body ground Power source circuit Always 11 to 14 V
      A83-49 (ASLM) - Body ground LG - Body ground Warning canceling switch signal Warning canceling switch on Below 1 Ω
      Warning canceling switch off 10 kΩ or higher
      A83-4 (E1) - Body ground W-B - Body ground Ground Always Below 1 Ω

      If the result is not as specified, there may be a malfunction on the wire harness side.
