RADIATOR GRILLE REMOVAL

PROCEDURE


  1. REMOVE FRONT BUMPER COVER


    1. for Resin Type Bumper:

      Click here

    2. for Steel Type Bumper:

      Click here

  2. REMOVE RADIATOR GRILLE


    1. for Resin Type Bumper (Type A):

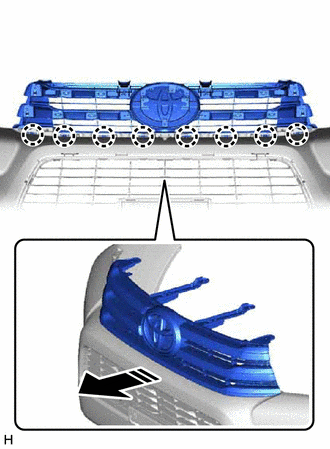

      1. B00690DC01
        B0069FO Remove in this Direction

        Detach the claw and remove the radiator grille as shown in the illustration.

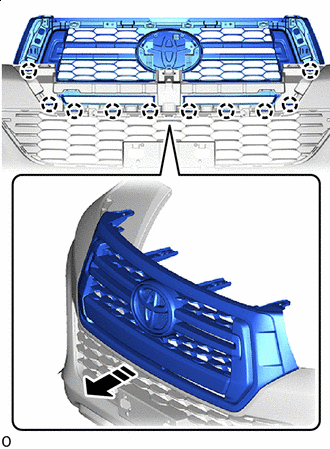

    2. B00692EC01
      B0069FO Remove in this Direction

      for Resin Type Bumper (Type B):


      1. Detach the claw and remove the radiator grille.

    3. for Steel Type Bumper:

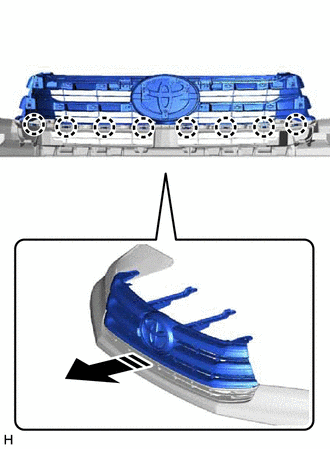

      1. B0068KQC01
        B0069FO Remove in this Direction

        Detach the claw and remove the radiator grille as shown in the illustration.
