FRONT SEAT CUSHION HEATER(for Power Seat) INSPECTION

PROCEDURE

  1. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY LH

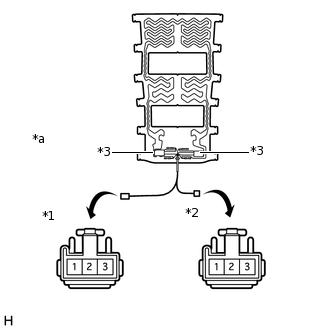

    B341145C01

    *1

    Connector A

    *2

    Connector B

    *3

    Thermostat

    *a

    Component without harness connected

    (Front Seat Cushion Heater Assembly LH)

    1. Check the front seat cushion heater assembly LH.

      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Condition

        Specified Condition

        A-2 - B-3

        Seat cushion heater temperature 20°C (68°F)

        3.25 to 3.31 Ω

        A-3 - B-2

        1.78 to 1.82 Ω

        A-1 - B-1

        Below 1 Ω

        If the result is not as specified, replace the front seat cushion heater assembly LH.

      2. Check the thermostat resistance.

        Standard Resistance

        Tester Connection

        Condition

        Specified Condition

        A-2 - B-3

        Thermostat temperature 42°C (108°F)

        10 kΩ or higher

        A-3 - B-2

        10 kΩ or higher

        If the result is not as specified, replace the front seat cushion heater assembly LH.

  2. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY RH

    B341145C01

    *1

    Connector A

    *2

    Connector B

    *3

    Thermostat

    *a

    Component without harness connected

    (Front Seat Cushion Heater Assembly RH)

    1. Check the front seat cushion heater assembly RH.

      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Condition

        Specified Condition

        A-2 - B-3

        Seat cushion heater temperature 20°C (68°F)

        3.25 to 3.31 Ω

        A-3 - B-2

        1.78 to 1.82 Ω

        A-1 - B-1

        Below 1 Ω

        If the result is not as specified, replace the front seat cushion heater assembly RH.

      2. Check the thermostat resistance.

        Standard Resistance

        Tester Connection

        Condition

        Specified Condition

        A-2 - B-3

        Thermostat temperature 42°C (108°F)

        10 kΩ or higher

        A-3 - B-2

        10 kΩ or higher

        If the result is not as specified, replace the front seat cushion heater assembly RH.
