RADIO RECEIVER COMPONENTS

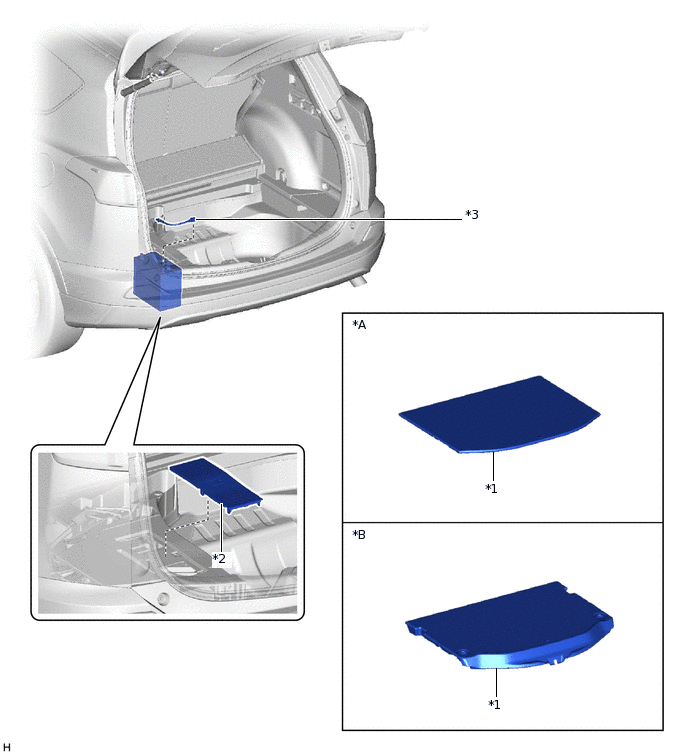

ILLUSTRATION
*A |
w/o Spare Tire, for Compact Spare Tire |
*B |
for Full Size Spare Tire |
*1 |
DECK BOARD ASSEMBLY |
*2 |
BATTERY SERVICE COVER |
*3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |

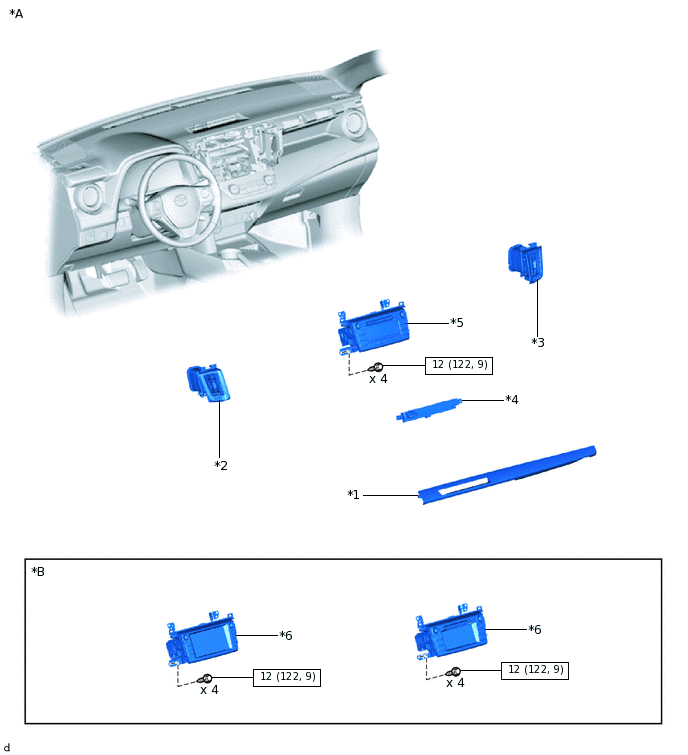

ILLUSTRATION
*A |
for Radio Receiver Type |
*B |
for Radio and Display Type |
*1 |
CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL |
*2 |
NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY |
*3 |
NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY |
*4 |
TELLTALE LIGHT ASSEMBLY |
*5 |
RADIO RECEIVER ASSEMBLY WITH BRACKET |
*6 |
RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

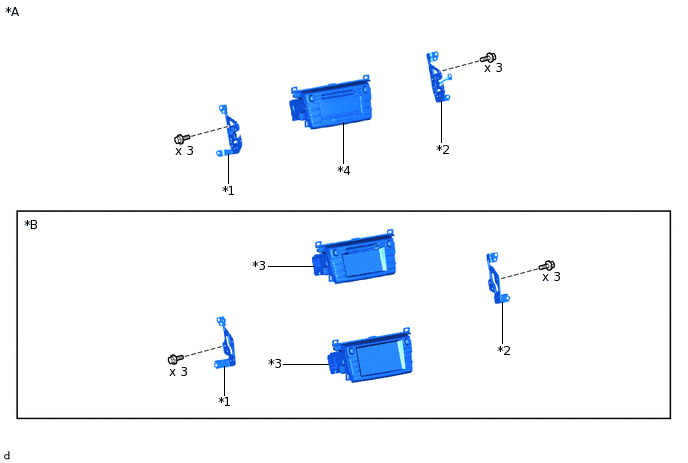

ILLUSTRATION
*A |
for Radio Receiver Type |
*B |
for Radio and Display Type |
*1 |
NO. 1 RADIO BRACKET |
*2 |
NO. 2 RADIO BRACKET |
*3 |
RADIO AND DISPLAY RECEIVER ASSEMBLY |
*4 |
RADIO RECEIVER ASSEMBLY |
