PRE-CRASH SAFETY SYSTEM, Diagnostic DTC:C1AA7

DTC Code DTC Name
C1AA7 Skid Control Buzzer Circuit

DESCRIPTION

When the pre-crash safety city sensor uses the pre-crash alarm control to sound a warning, a buzzer signal is output to the pre-crash safety city buzzer. This DTC is output when the pre-crash safety city sensor detects a malfunction in the pre-crash safety city buzzer circuit.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

C1AA7

Skid Control Buzzer Circuit

Either of the following conditions is met with the ignition switch ON and a pre-crash safety city buzzer signal being output:

  • Pre-crash safety city buzzer on malfunction continues for 1 second or more.

  • Pre-crash safety city buzzer off malfunction continues for 1 second or more.

  • Pre-crash safety city buzzer

  • Pre-crash safety city sensor

  • Harness or connector

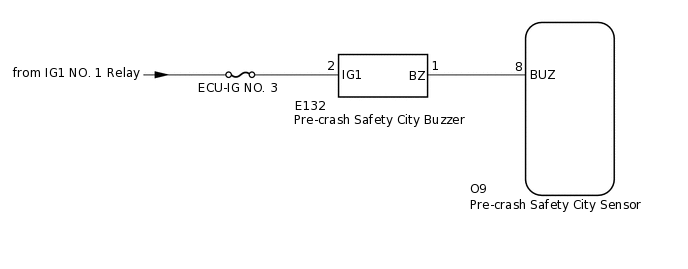

WIRING DIAGRAM

B403796E07

CAUTION / NOTICE / HINT

Note:

  • Inspect the fuses for circuits related to this system before performing the following procedure.

  • When replacing the pre-crash safety city sensor, replace it with a new one and be sure to initialize the settings. If a pre-crash safety city sensor which was installed to another vehicle is used, the information stored in the pre-crash safety city sensor will not match the information from the vehicle and, as a result, a DTC may be stored.

  • If the pre-crash safety city sensor has been replaced, or the windshield glass has been replaced or removed/installed, be sure to perform Recognition Camera/Target Position Memory and Recognition Camera Axis Adjust.

    Click hereClick here

PROCEDURE

  1. INSPECT PRE-CRASH SAFETY CITY BUZZER

    1. Remove the pre-crash safety city buzzer.

      Click hereClick here

    2. Inspect the pre-crash safety city buzzer.

      Click here

    Result

    Proceed to

    OK

    NG
    NG

    REPLACE PRE-CRASH SAFETY CITY BUZZER

    Click here

    OK

  2. CHECK HARNESS AND CONNECTOR (PRE-CRASH SAFETY CITY BUZZER - BATTERY)

    1. B338290C69

      *a

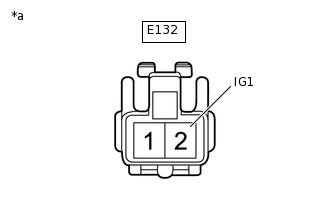

      Front view of wire harness connector

      (to Pre-crash Safety City Buzzer)

      Disconnect the E132 pre-crash safety city buzzer connector.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection

      Condition

      Specified Condition

      E132-2 (IG1) - Body ground

      Ignition switch is ON

      11 to 14 V

      E132-2 (IG1) - Body ground

      Ignition switch off

      Below 1 V

    Result

    Proceed to

    OK

    NG
    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  3. CHECK HARNESS AND CONNECTOR (PRE-CRASH SAFETY CITY BUZZER - PRE-CRASH SAFETY CITY SENSOR)

    1. Disconnect the E132 pre-crash safety city buzzer connector.

    2. Disconnect the O9 pre-crash safety city sensor connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      E132-1 (BZ) - O9-8 (BUZ)

      Always

      Below 1 Ω

      E132-1 (BZ) - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    OK

    REPLACE PRE-CRASH SAFETY CITY SENSOR

    Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
