POWER OUTLET SOCKET(for Front Side) REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY

    Click here

  2. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Click hereClick here

  3. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

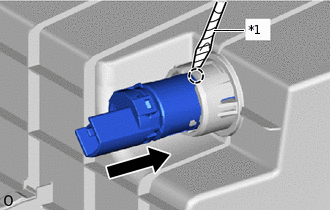

    1. B339700C02

      *1

      Protective Tape

      Using a screwdriver, detach the claw to remove the No. 1 power outlet socket assembly.

      Tip:

      • Tape the screwdriver tip before use.

      • Use the same procedure to remove the other No. 1 power outlet socket assembly.

  4. REMOVE NO. 1 POWER OUTLET SOCKET COVER

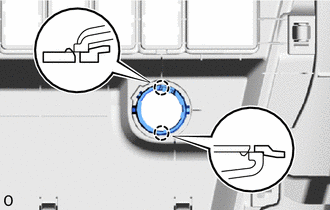

    B339701

    1. Detach the 2 claws and remove the No. 1 power outlet socket cover.

      Tip:

      Use the same procedure to remove the other No. 1 power outlet socket cover.
