THERMOSTAT REMOVAL

PROCEDURE

1. DRAIN ENGINE COOLANT

   Click here

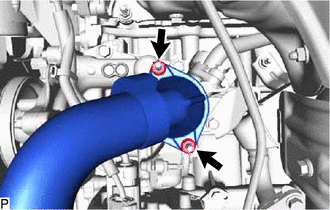

2. DISCONNECT WATER INLET

   1.

      Remove the 2 nuts and disconnect the water inlet.

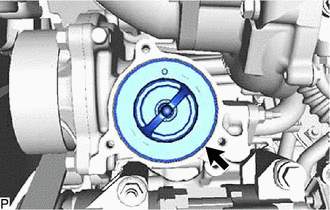

3. REMOVE THERMOSTAT

   1.

      Remove the thermostat.

   2. Remove the gasket from the thermostat.
