CLUTCH UNIT(for EC65A) INSPECTION

PROCEDURE

  1. INSPECT CLUTCH DISC ASSEMBLY

    C187769

    1. Using a vernier caliper, measure the rivet head depth.

      Minimum Rivet Depth

      0.3 mm (0.0118 in.)

      If necessary, replace the clutch disc assembly.

    2. Install the clutch disc assembly to the multi-mode manual transaxle assembly.

      Tip:

      Insert the clutch disc assembly in the correct direction.

    3. C187770

      Using a dial indicator, measure the clutch disc assembly runout.

      Maximum Runout

      0.8 mm (0.0315 in.)

      If necessary, replace the clutch disc assembly.

  2. INSPECT CLUTCH COVER ASSEMBLY

    D029069N03

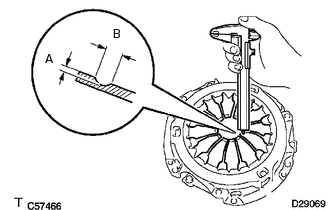

    1. Using a vernier caliper, measure the depth and width of the diaphragm spring wear.

      Maximum

      A (Depth): 0.5 mm (0.0197 in.)

      B (Width): 6.0 mm (0.236 in.)

      If necessary, replace the clutch cover assembly.

  3. INSPECT FLYWHEEL SUB-ASSEMBLY

    C204678

    1. Using a dial indicator, check the flywheel sub-assembly runout.

      Maximum Runout

      0.1 mm (0.00394 in.)

      If necessary, replace the flywheel sub-assembly.
