FRONT SEAT CUSHION HEATER(for Sedan) INSPECTION

PROCEDURE

  1. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY LH

    1. B351805C01

      *a

      Component without harness connected

      (Front Seat Cushion Heater Assembly LH)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      T3-1 - B-2

      15 to 30°C (59 to 86°F)

      0.81 to 0.99 Ω

      T3-2 - B-2

      15 to 30°C (59 to 86°F)

      0.81 to 0.99 Ω

      T3-4 - B-1

      Always

      Below 1 Ω

      If the result is not as specified, replace the front seat cushion heater assembly LH.

  2. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY RH

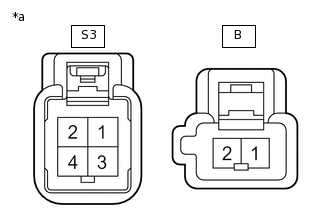

    1. B351805C03

      *a

      Component without harness connected

      (Front Seat Cushion Heater Assembly RH)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      S3-1 - D-2

      15 to 30°C (59 to 86°F)

      0.81 to 0.99 Ω

      S3-2 - D-2

      15 to 30°C (59 to 86°F)

      0.81 to 0.99 Ω

      S3-4 - D-1

      Always

      Below 1 Ω

      If the result is not as specified, replace the front seat cushion heater assembly RH.
