CONDENSER REASSEMBLY

PROCEDURE

  1. INSTALL COOLER DRYER

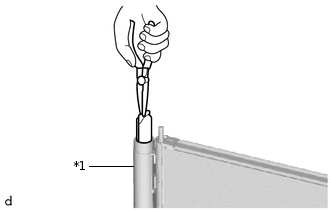

    1. B374992C01

      *1

      Modulator

      Using pliers, install a new cooler dryer to the modulator.

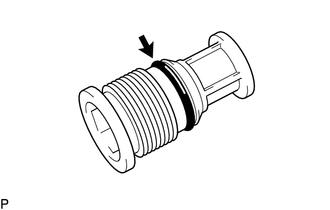

    2. E101932

      Apply sufficient compressor oil to the O-ring.

      Compressor Oil

      ND-OIL 11 or equivalent

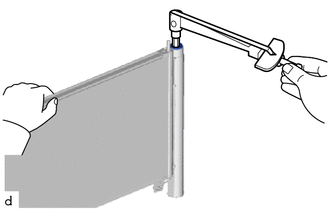

    3. B374993

      Using a 14 mm hexagon socket wrench, install the cap to the modulator.

      2.9 N*m

      30 kgf*cm

      26 in.*lbf

  2. INSTALL NO. 1 COOLER CONDENSER CUSHION

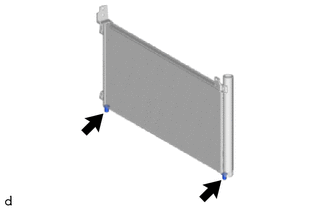

    1. B374994

      Install the 2 No. 1 cooler condenser cushions to the cooler condenser assembly.
