CHARGING SYSTEM ON-VEHICLE INSPECTION

PROCEDURE

  1. CHECK AUXILIARY BATTERY

    1. Check that the auxiliary battery cables are connected to the correct terminals.

      Tip:

      If they are not, connect them properly.

    2. Check the auxiliary battery for damage and deformation.

      Tip:

      If severe damage, deformation or leakage is found, replace the auxiliary battery.

  2. CHECK AUXILIARY BATTERY VOLTAGE

    1. Turn the power switch off and turn on the high beam headlights for 30 seconds. This will remove the surface charge from the auxiliary battery.

    2. Measure the auxiliary battery voltage according to the value(s) in the table below.

      Result

      Tester Connection

      Condition

      Specified Condition

      Result

      Positive (+) auxiliary battery terminal - Negative (-) auxiliary battery terminal

      20°C (68°F), power switch off

      12.5 V or higher

      Auxiliary battery is OK

      11.0 to 12.5 V

      Recharge auxiliary battery

      Below 11.0 V

      Replace auxiliary battery

  3. RECHARGE AUXILIARY BATTERY

    1. Recharge the auxiliary battery.

      Tip:

      • Recharge the auxiliary battery according to the charger's instructions.

      • Apply the appropriate charging current according to the type of auxiliary battery shown in the table below.

      Auxiliary Battery Type

      Charging Current

      S55D23R

      5 A

      S46B24R

      4.2 A

    2. Turn the power switch off and turn on the high beam headlights for 30 seconds. This will remove the surface charge from the auxiliary battery.

    3. Measure the auxiliary battery voltage according to the value(s) in the table below.

      Result

      Tester Connection

      Condition

      Specified Condition

      Result

      Positive (+) auxiliary battery terminal - Negative (-) auxiliary battery terminal

      20°C (68°F), power switch off

      12.5 V or higher

      Auxiliary battery is OK

      11.0 to 12.5 V

      Recharge auxiliary battery

      Below 11.0 V

      Replace auxiliary battery

  4. CHECK AUXILIARY BATTERY TERMINAL, FUSIBLE LINK AND FUSE

    1. Check that the auxiliary battery terminals are not loose or corroded.

      Positive (+) auxiliary battery terminal

      5.4 N*m

      55 kgf*cm

      48 in.*lbf

      Negative (-) auxiliary battery terminal

      5.4 N*m

      55 kgf*cm

      48 in.*lbf

      If the terminals are corroded, clean them.

    2. Measure the resistance of each fusible link and fuse for the auxiliary battery charging system.

      Standard Resistance

      Below 1 Ω

      If any of the results is not as specified, replace the fusible link or fuse as necessary.

  5. CHECK AMD TERMINAL

    CAUTION:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.

      Note:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.

    2. Check that the AMD terminal is connected securely, and there is no contact problem.

      If there are any arc marks, replace the affected parts.

    3. Check that the nut for the AMD terminal is tightened to the specified torque.

      Tip:

      If there are no arc marks and the AMD terminal connection is faulty, connect the AMD terminal securely.

    4. Install the service plug grip.

  6. CHECK DC/DC CONVERTER FUNCTION

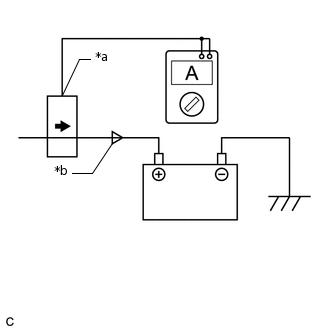

    1. A174427C03

      *a

      Probe Direction

      *b

      Current Flowing into Auxiliary Battery

      Connect the AC/DC 400 A probe to the positive (+) auxiliary battery cable.

    2. Turn the power switch on (READY) and leave the vehicle as it is until the electric current flowing into the auxiliary battery becomes 10 A or less.

    3. With the power switch on (READY), set the headlight position switch and blower motor switch to the HI position, and then turn the rear window defogger on.

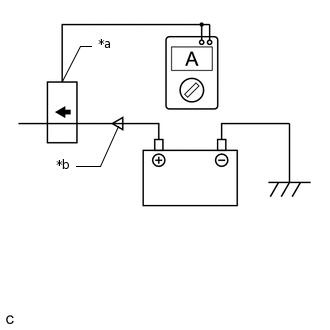

    4. A174428C03

      *a

      Probe Direction

      *b

      Current Flowing from Auxiliary Battery

      Measure the current and voltage according to the value(s) in the table below.

      Result

      Item

      Tester Connection

      Condition

      Specified Condition

      Current flowing from auxiliary battery

      Positive (+) auxiliary battery cable

      Power switch on (READY)

      (The high beam headlights are on, the blower motor switch is in the HI position, and the rear window defogger is turned on.)

      0 A or less

      (no current from auxiliary battery)

      Auxiliary battery voltage

      Positive (+) auxiliary battery terminal - Negative (-) auxiliary battery terminal

      13.8 to 14.7 V

      If the result is not as specified, replace the inverter with converter assembly.
