REAR COMBINATION LIGHT ASSEMBLY INSPECTION

PROCEDURE

  1. INSPECT REAR COMBINATION LIGHT ASSEMBLY LH

    1. E395261C03

      *a

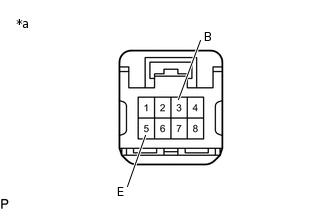

      Component without harness connected

      (Rear Combination Light Assembly LH)

      Apply battery voltage to the rear combination light assembly LH and check that the light illuminates.

      OK

      Measurement Condition

      Specified Condition

      Battery positive (+) → Terminal 3 (B)

      Battery negative (-) → Terminal 5 (E)

      Taillight light illuminates

      If the result is not as specified, replace the rear combination light assembly LH.

  2. INSPECT REAR COMBINATION LIGHT ASSEMBLY RH

    1. E395261C03

      *a

      Component without harness connected

      (Rear Combination Light Assembly RH)

      Apply battery voltage to the rear combination light assembly RH and check that the light illuminates.

      OK

      Measurement Condition

      Specified Condition

      Battery positive (+) → Terminal 3 (B)

      Battery negative (-) → Terminal 5 (E)

      Taillight light illuminates

      If the result is not as specified, replace the rear combination light assembly RH.
