CONDENSER REMOVAL

PROCEDURE

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    1. for HFC-134a(R134a):

      Click here

    2. for HFO-1234yf(R1234yf):

      Click here

  2. REMOVE FRONT BUMPER COVER

    Click here

  3. REMOVE RADIATOR ASSEMBLY (for Inverter)

    Click here

  4. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

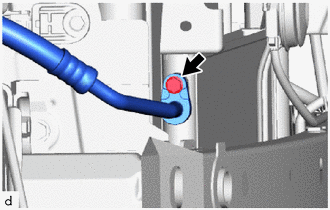

    1. E333861

      Remove the bolt and disconnect the discharge hose sub-assembly.

    2. Remove the O-ring from the discharge hose sub-assembly.

      Note:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  5. DISCONNECT LIQUID PIPE SUB-ASSEMBLY

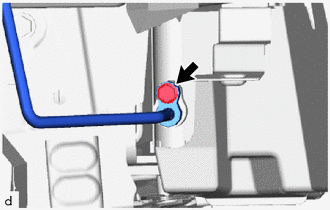

    1. E333862

      Remove the bolt and disconnect the liquid pipe sub-assembly.

    2. Remove the O-ring from the liquid pipe sub-assembly.

      Note:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  6. REMOVE COOLER CONDENSER ASSEMBLY

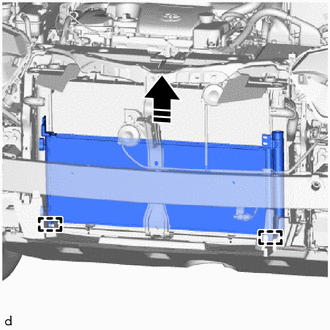

    1. E333863

      Detach the 2 guides and remove the cooler condenser assembly.

      Note:

      Do not damage the cooler condenser assembly or radiator assembly when removing the cooler condenser assembly.
