COMBINATION METER REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Click here

  2. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

    Click here

  3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Click here

  4. REMOVE COMBINATION METER ASSEMBLY

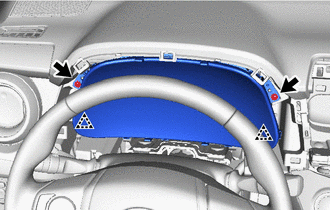

    1. E341380

      Remove the 2 screws.

    2. Detach the 2 clips.

    3. Disconnect the connectors and remove the combination meter assembly.
