REAR COMBINATION LIGHT ASSEMBLY COMPONENTS

ILLUSTRATION

B370746C02

*A

w/ Package Tray Trim

-

-

*1

PACKAGE TRAY TRIM PANEL ASSEMBLY

*2

REAR FLOOR MAT ASSEMBLY

ILLUSTRATION

E295383C01

*A

for 3 Door

-

-

*1

COWL SIDE TRIM SUB-ASSEMBLY

*2

FRONT DOOR OPENING TRIM WEATHERSTRIP

●

Non-reusable part

-

-

ILLUSTRATION

E295382C01

*A

for 5 Door

*B

w/o Luggage Compartment Room Light

*C

w/ Luggage Compartment Room Light

*D

w/ Curtain Shield Airbag

*E

for LH Side

-

-

*1

INNER ROOF SIDE GARNISH

*2

INNER ROOF SIDE GARNISH COVER

*3

NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

*4

NO. 1 REAR SEAT OUTER BELT ASSEMBLY

*5

REAR DOOR OPENING TRIM WEATHERSTRIP

*6

REAR SEAT SIDE GARNISH
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

ILLUSTRATION

B370753C02

*A

for 3 Door

*B

w/o Luggage Compartment Room Light

*C

w/ Luggage Compartment Room Light

*D

w/ Curtain Shield Airbag

*E

for LH Side

-

-

*1

FRONT QUARTER TRIM PANEL ASSEMBLY

*2

FRONT SEAT OUTER BELT ASSEMBLY

*3

INNER ROOF SIDE GARNISH

*4

INNER ROOF SIDE GARNISH COVER

*5

NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

*6

NO. 1 REAR SEAT OUTER BELT ASSEMBLY

*7

ROOF SIDE GARNISH END COVER

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

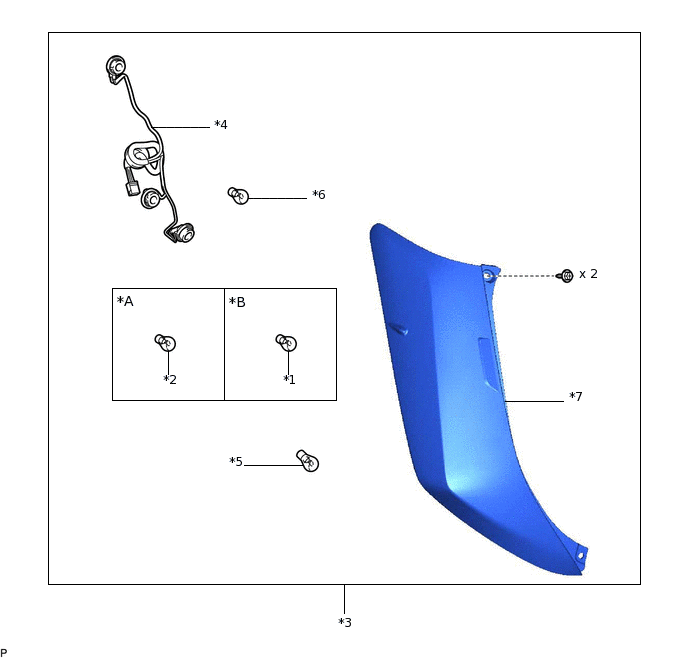

ILLUSTRATION

E290989C01

*A

for LH Side

*B

for RH Side

*1

BACK-UP LIGHT BULB

*2

NO. 1 REAR FOG LIGHT BULB

*3

REAR COMBINATION LIGHT ASSEMBLY

*4

REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY

*5

REAR TURN SIGNAL LIGHT BULB

*6

TAIL AND STOP LIGHT BULB

*7

REAR COMBINATION LIGHT LENS AND BODY

-

-

ILLUSTRATION

E294559C01

*A

for 5 Door

-

-

*1

OUTER QUARTER GARNISH SUB-ASSEMBLY

-

-

●

Non-reusable part

-

-
