CAN COMMUNICATION SYSTEM(for LHD) Open in Bus 5 Main Bus Line

DTC Code DTC Name
Open in Bus 5 Main Bus Line

DESCRIPTION

There may be an open circuit in one of the bus 5 CAN main wires when the resistance between terminals 15 (CA5H) and 16 (CA5L) of the central gateway ECU is 70 Ω or higher.

Symptom

Trouble Area

Resistance between terminals 15 (CA5H) and 16 (CA5L) of central gateway ECU is 70 Ω or higher.

  • CAN main wire or connector

  • Central gateway ECU

  • Hybrid vehicle control ECU

  • No. 9 CAN junction connector

  • No. 10 CAN junction connector

This malfunction is not related to the lines of a bus 5 branch or to ECUs or sensors connected to a bus 5 branch.

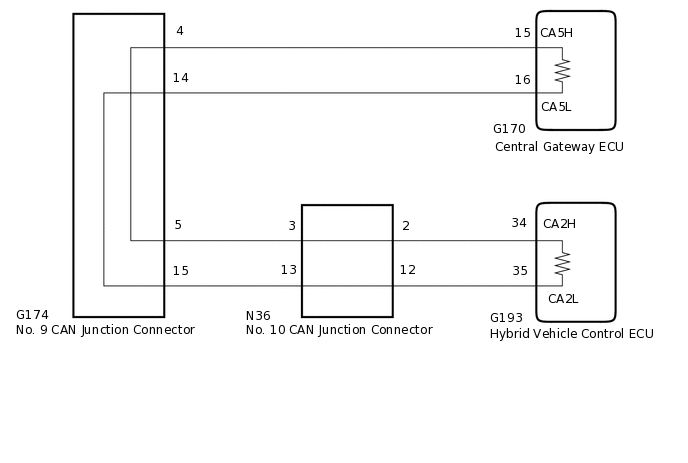

WIRING DIAGRAM

C334645E03

CAUTION / NOTICE / HINT

Note:

  • Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

    Click here

  • Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key, switches or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.

  • After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work.

    Click hereClick hereClick hereClick here

  • After the repair, perform CAN Bus Check and check that all the ECUs and sensors connected to the CAN communication system are displayed.

    Click hereClick hereClick here

Tip:

  • Operating the power switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

  • Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below may help determine the cause of the malfunction.

PROCEDURE

  1. CHECK FOR OPEN IN CAN BUS WIRE (NO. 9 CAN JUNCTION CONNECTOR)

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

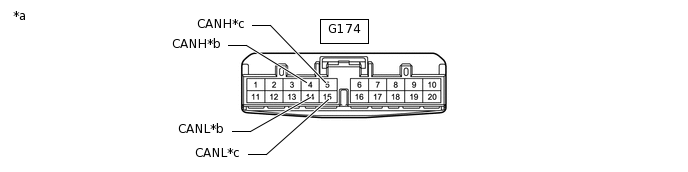

      C343209C17

      *a

      Front view of wire harness connector

      (to No. 9 CAN Junction Connector)

      *b

      to Central Gateway ECU

      *c

      to No. 10 CAN Junction Connector

      -

      -

    2. Disconnect the No. 9 CAN junction connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      G174-4 (CANH) - G174-14 (CANL)

      Cable disconnected from negative (-) auxiliary battery terminal

      108 to 132 Ω

      G174-5 (CANH) - G174-15 (CANL)

      Cable disconnected from negative (-) auxiliary battery terminal

      108 to 132 Ω

    Result

    Result

    Result

    Proceed to

    OK

    A

    NG (No. 10 CAN junction connector CAN main wire)

    B

    NG (Central gateway ECU CAN main wire)

    C
    A

    REPLACE NO. 9 CAN JUNCTION CONNECTOR

    C

    CONNECT CONNECTORClick here

    B

  2. CONNECT CONNECTOR

    1. Reconnect the G174 No. 9 CAN junction connector.

    Result

    Proceed to

    NEXT
    NEXT

  3. CHECK FOR OPEN IN CAN BUS WIRE (NO. 10 CAN JUNCTION CONNECTOR)

    1. Disconnect the No. 10 CAN junction connector.

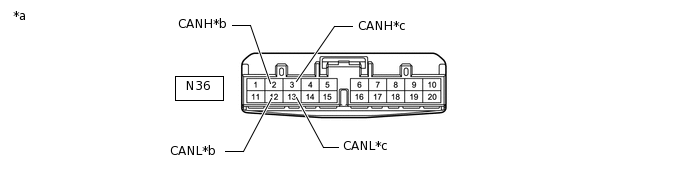

      C343209C18

      *a

      Front view of wire harness connector

      (to No. 10 CAN Junction Connector)

      *b

      to Hybrid Vehicle Control ECU

      *c

      to No. 9 CAN Junction Connector

      -

      -

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      N36-2 (CANH) - N36-12 (CANL)

      Cable disconnected from negative (-) auxiliary battery terminal

      108 to 132 Ω

      N36-3 (CANH) - N36-13 (CANL)

      Cable disconnected from negative (-) auxiliary battery terminal

      108 to 132 Ω

    Result

    Result

    Result

    Proceed to

    OK

    A

    NG (No. 9 CAN junction connector CAN main wire)

    B

    NG (Hybrid vehicle control ECU CAN main wire)

    C
    A

    REPLACE NO. 10 CAN JUNCTION CONNECTOR

    B

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - NO. 9 CAN JUNCTION CONNECTOR)

    C

  4. CONNECT CONNECTOR

    1. Reconnect the N36 No. 10 CAN junction connector.

    Result

    Proceed to

    NEXT
    NEXT

  5. CHECK FOR OPEN IN CAN BUS WIRE (HYBRID VEHICLE CONTROL ECU)

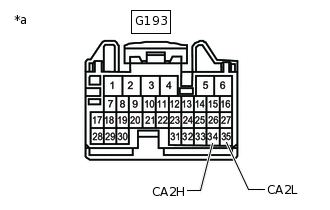

    1. C285701C35

      *a

      Front view of wire harness connector

      (to Hybrid Vehicle Control ECU)

      Disconnect the hybrid vehicle control ECU connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      G193-34 (CA2H) - G193-35 (CA2L)

      Cable disconnected from negative (-) auxiliary battery terminal

      108 to 132 Ω

    Result

    Proceed to

    OK

    NG
    OK

    REPLACE HYBRID VEHICLE CONTROL ECU

    Click here

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (HYBRID VEHICLE CONTROL ECU - NO. 10 CAN JUNCTION CONNECTOR)

  6. CONNECT CONNECTOR

    1. Reconnect the G174 No. 9 CAN junction connector.

    Result

    Proceed to

    NEXT
    NEXT

  7. CHECK FOR OPEN IN CAN BUS WIRE (CENTRAL GATEWAY ECU)

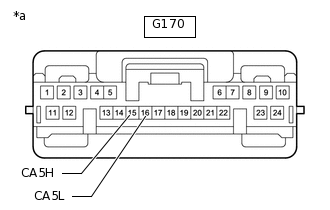

    1. C326490C32

      *a

      Front view of wire harness connector

      (to Central Gateway ECU)

      Disconnect the central gateway ECU connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      G170-15 (CA5H) - G170-16 (CA5L)

      Cable disconnected from negative (-) auxiliary battery terminal

      108 to 132 Ω

    Result

    Proceed to

    OK

    NG
    OK

    REPLACE CENTRAL GATEWAY ECU

    Click here

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (CENTRAL GATEWAY ECU - NO. 9 CAN JUNCTION CONNECTOR)
