INTAKE SYSTEM


  1. CONSTRUCTION

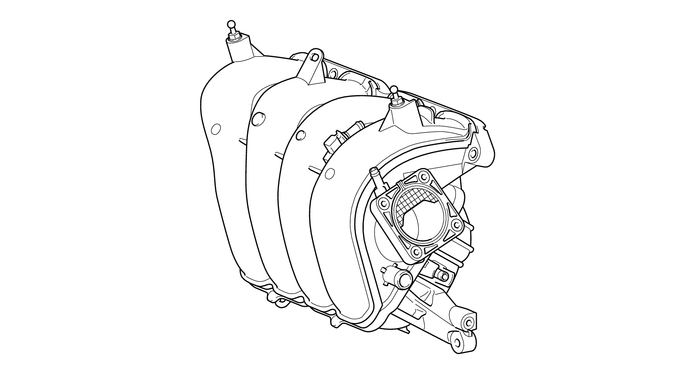

    1. The intake manifold is made of lightweight plastic for weight reduction.

      A01GH4D

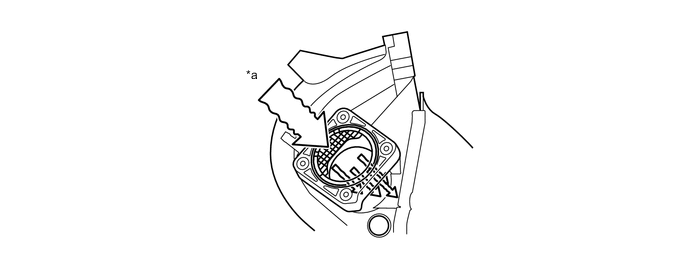

    2. A mesh type throttle body gasket is used between the throttle body assembly and the intake manifold to improve the flow of air within the intake manifold.

      A01GGOZC01
      *a Intake Air - -
