FRONT LOWER SUSPENSION ARM COMPONENTS

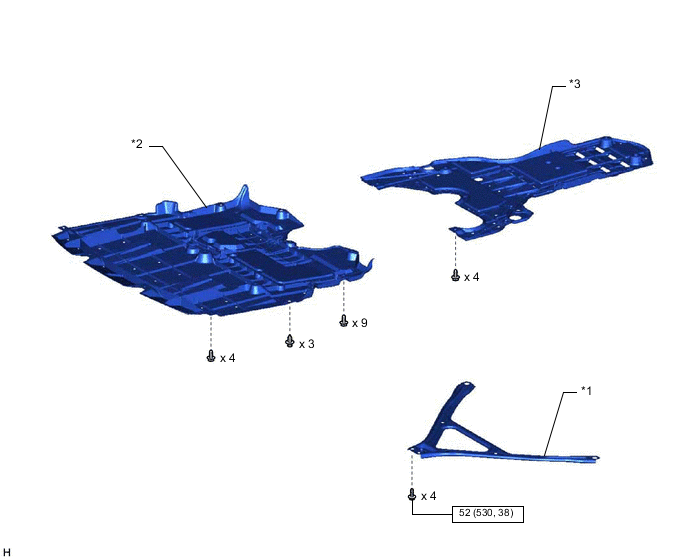

ILLUSTRATION
| *1 | FRONT SUSPENSION MEMBER BRACE | *2 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
| *3 | NO. 2 ENGINE UNDER COVER | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

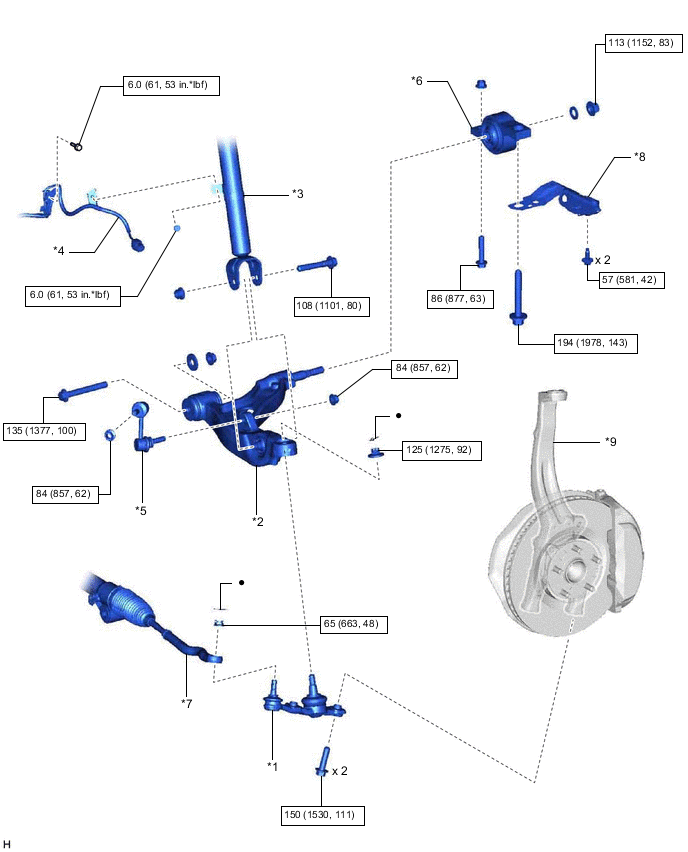

ILLUSTRATION
| *1 | FRONT LOWER BALL JOINT ASSEMBLY | *2 | FRONT LOWER SUSPENSION ARM ASSEMBLY |
| *3 | FRONT SHOCK ABSORBER WITH COIL SPRING | *4 | FRONT SKID CONTROL SENSOR WIRE |
| *5 | FRONT STABILIZER LINK ASSEMBLY | *6 | LOWER NO. 2 ARM BRACKET SUB-ASSEMBLY |
| *7 | TIE ROD ASSEMBLY | *8 | STRUT BAR BRACKET REINFORCEMENT |
| *9 | STEERING KNUCKLE | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
