REAR COMBINATION LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

PROCEDURE

1. REMOVE REAR COMBINATION LIGHT ASSEMBLY

   1.

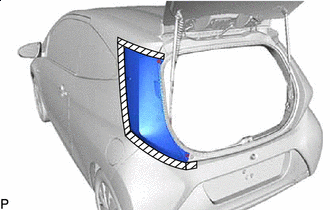

      Protective Tape

      Apply protective tape around the rear combination light assembly.

   2.

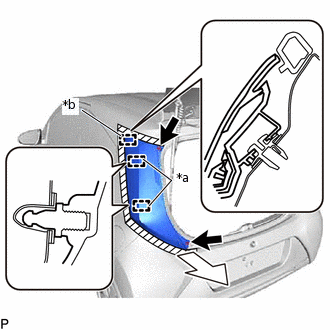

      *a	Pin
      *b	Guide

      Remove the 2 screws.

   3. Disengage the 2 pins and guide, and disconnect the rear combination light assembly as shown in the illustration.

   4.

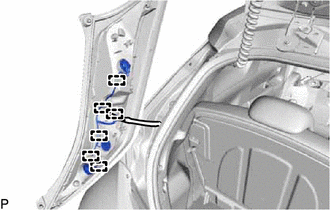

      Disengage each clamp.

   5.

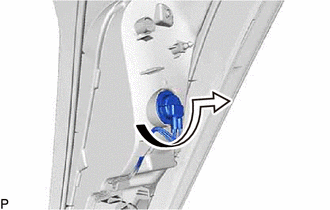

      Turn the rear combination light socket and wire sub-assembly with the tail and stop light bulb as shown in the illustration to disconnect them as a unit.

   6. for LH Side:

      1.

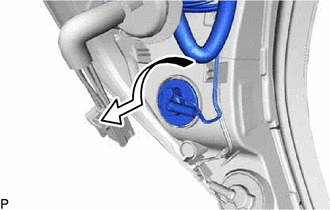

         Turn the rear combination light socket and wire sub-assembly with the No. 1 rear fog light bulb as shown in the illustration to disconnect them as a unit.

   7. for RH Side:

      1.

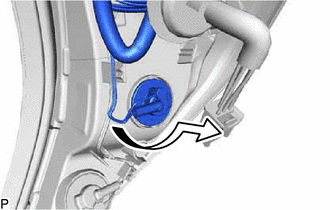

         Turn the rear combination light socket and wire sub-assembly with the back-up light bulb as shown in the illustration to disconnect them as a unit.

   8.

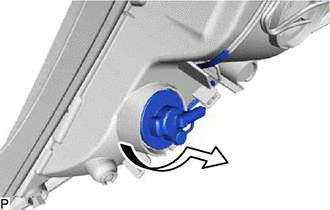

      Turn the rear combination light socket and wire sub-assembly with the rear turn signal light bulb as shown in the illustration to remove the rear combination light assembly.

2. REMOVE TAIL AND STOP LIGHT BULB

   1. Remove the tail and stop light bulb from the rear combination light socket and wire sub-assembly.

3. REMOVE NO. 1 REAR FOG LIGHT BULB (for LH Side)

   1. Remove the No. 1 rear fog light bulb from the rear combination light socket and wire sub-assembly.

4. REMOVE BACK-UP LIGHT BULB (for RH Side)

   1. Remove the back-up light bulb from the rear combination light socket and wire sub-assembly.

5. REMOVE REAR TURN SIGNAL LIGHT BULB

   1. Remove the rear turn signal light bulb from the rear combination light socket and wire sub-assembly.

6. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Package Tray Trim)

   Click here

7. REMOVE REAR FLOOR MAT ASSEMBLY

   Click here

8. REMOVE REAR SEAT ASSEMBLY (for Separate Seat Type)

   Click here

9. REMOVE REAR SEAT ASSEMBLY (for Bench Seat Type)

   Click here

10. REMOVE COWL SIDE TRIM SUB-ASSEMBLY (for 3 Door)

    Click here

11. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP (for 3 Door)

    Click here

12. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP (for 5 Door)

    Click here

13. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY (for 3 Door)

    Click here

14. DISCONNECT NO. 1 REAR SEAT OUTER BELT ASSEMBLY (for 5 Door)

    Click here

15. DISCONNECT NO. 1 REAR SEAT OUTER BELT ASSEMBLY (for 3 Door)

    Click here

16. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY (for 3 Door)

    Click here

17. REMOVE REAR SEAT SIDE GARNISH (for 5 Door)

    Click here

18. REMOVE INNER ROOF SIDE GARNISH COVER (for LH Side)

    w/o Luggage Compartment Room Light:Click here

19. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)

    w/ Luggage Compartment Room Light:Click here

20. REMOVE ROOF SIDE GARNISH END COVER (for 3 Door)

    Click here

21. REMOVE INNER ROOF SIDE GARNISH (for 5 Door)

    Click here

22. REMOVE INNER ROOF SIDE GARNISH (for 3 Door)

    Click here

23. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY

    1.

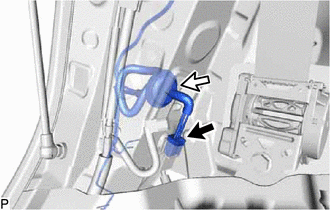

       Disconnect the connector.

    2. Disengage the grommet to remove the rear combination light socket and wire sub-assembly.

24. REMOVE OUTER QUARTER GARNISH SUB-ASSEMBLY (for 5 Door)

    Tip:

    When removing the outer quarter garnish sub-assembly, heat the vehicle body and outer quarter garnish sub-assembly using a heat light.

    Table 1. Heating Temperature

    Item	Temperature
    Vehicle Body	40 to 60°C (104 to 140°F)
    Outer Quarter Garnish Sub-assembly	20 to 30°C (68 to 86°F)

    Note:

    Do not heat the vehicle body or outer quarter garnish sub-assembly excessively.

    1.

       Double-sided Tape

       Disengage the 2 clips.

    2. Separate the double-sided tape to remove the outer quarter garnish sub-assembly.
