THROTTLE BODY INSPECTION

PROCEDURE

  1. INSPECT THROTTLE WITH MOTOR BODY ASSEMBLY

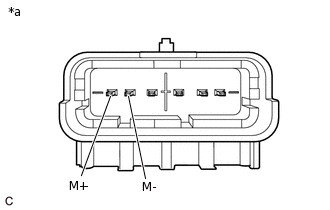

    1. A331268C01

      *a

      Component without harness connected

      (Throttle with Motor Body Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      1 (M+) - 2 (M-)

      25°C (77°F)

      1.35 to 1.65 Ω

      If the result is not as specified, replace the throttle with motor body assembly.
