FRONT CONSOLE BOX(for Sedan) INSTALLATION

PROCEDURE

  1. INSTALL REAR CONSOLE BOX ASSEMBLY

    1. w/ Power Outlet Socket:

      1. Connect the connector.

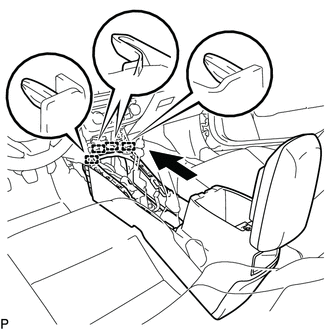

    2. B350667

      Engage the 4 guides as shown in the illustration.

    3. for Manual Transaxle:

      1. Install the rear console box assembly with the 2 bolts and 2 screws.

    4. for CVT:

      1. Install the rear console box assembly with the 2 bolts and 4 screws.

  2. INSTALL INSTRUMENT PANEL BOX ASSEMBLY

    1. Engage the clamp.

    2. Connect each connector.

    3. Engage the 4 clips to install the instrument panel box assembly.

  3. INSTALL CONSOLE BOX CARPET

    1. Install the console box carpet.

  4. INSTALL UPPER CONSOLE PANEL

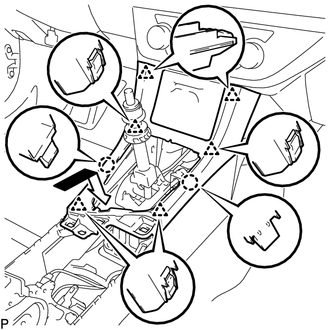

    1. B350659

      Engage the 2 claws and 6 clips to install the upper console panel as shown in the illustration.

    2. Engage the clamp.

  5. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

    1. Connect each connector.

    2. Engage the 4 claws and 5 clips to install the upper console panel sub-assembly.

  6. INSTALL SHIFTING HOLE BEZEL (for CVT)

    1. Engage the 2 guides.

    2. Engage the 6 claws to install the shifting hole bezel.

  7. INSTALL SHIFTING HOLE BEZEL (for Manual Transaxle)

    1. Engage the 2 guides.

    2. Engage the 6 claws to install the shifting hole bezel.

  8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)

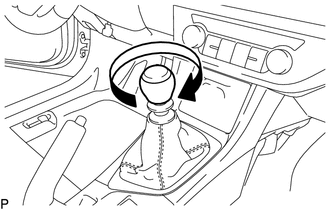

    1. B350653

      Turn the shift lever knob sub-assembly clockwise and install the shift lever knob sub-assembly.

  9. INSTALL FRONT NO. 2 CONSOLE BOX INSERT

    1. B350651C01

      *a

      Guide <A>

      *b

      Guide <B>

      Push the front No. 2 console box insert in the direction indicated by the arrow (1) to engage the guide <B>.

    2. Push the front No. 2 console box insert in the direction indicated by the arrow (2) to engage the claw, 3 clips and guide <A> to install the front No. 2 console box insert.

  10. INSTALL FRONT NO. 1 CONSOLE BOX INSERT

    1. B350649C01

      *a

      Guide <A>

      *b

      Guide <B>

      Push the front No. 1 console box insert in the direction indicated by the arrow (1) to engage the guide <B>.

    2. Push the front No. 1 console box insert in the direction indicated by the arrow (2) to engage the claw, 3 clips and guide <A> to install the front No. 1 console box insert.
