RADIO ANTENNA CORD INSTALLATION


  1. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Single Cab)


    1. Attach the 5 clamps to install the antenna cord.

    2. Connect the 2 connectors.

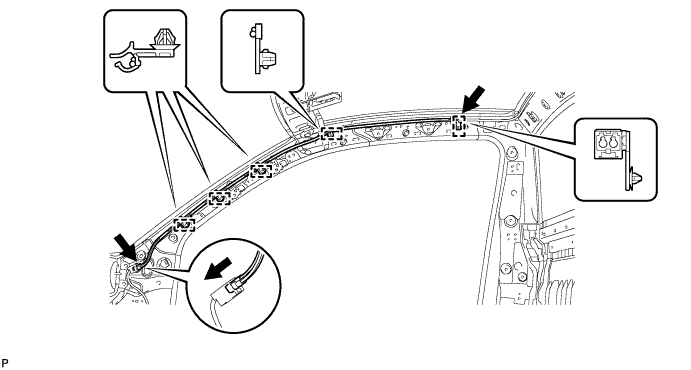

      A01E02A

  2. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Double Cab)


    1. Attach the 8 clamps to install the antenna cord.

    2. Connect the 2 connectors.

      A01E14R

  3. INSTALL ROOF HEADLINING ASSEMBLY


    1. for Single Cab:

      Click here

    2. for Double Cab:

      Click here

  4. INSTALL ANTENNA CORD SUB-ASSEMBLY (for LHD)


    1. w/o Roof Antenna:


      1. Attach the 4 clamps shown in the illustration to install the antenna cord.

        A01DWJD

      2. Connect the connector.

    2. w/ Roof Antenna:


      1. Install the antenna cord with the clamp bolt.

        A01E2BN

      2. Attach the 5 clamps.

      3. Connect the connector.

  5. INSTALL ANTENNA CORD SUB-ASSEMBLY (for RHD)


    1. w/ Roof Antenna:


      1. Install the antenna cord with the clamp bolt.

        A01DXX7

      2. Attach the 4 clamps.

      3. Connect the connectors.

    2. w/o Roof Antenna:


      1. Install the antenna cord with the 4 clamps as shown in the illustration.

        A01E0TA

      2. Connect the connector.

  6. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY

    Click here

  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.
