PARKING BRAKE PEDAL INSTALLATION

PROCEDURE

  1. INSTALL PARKING PEDAL PAD

    1. Install the parking pedal pad.

  2. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY

    1. Connect the No. 1 parking brake cable No. 3 clamp to the No. 1 parking brake cable.

    2. Temporarily install the No. 1 parking brake cable assembly with the adjusting nut and lock nut.

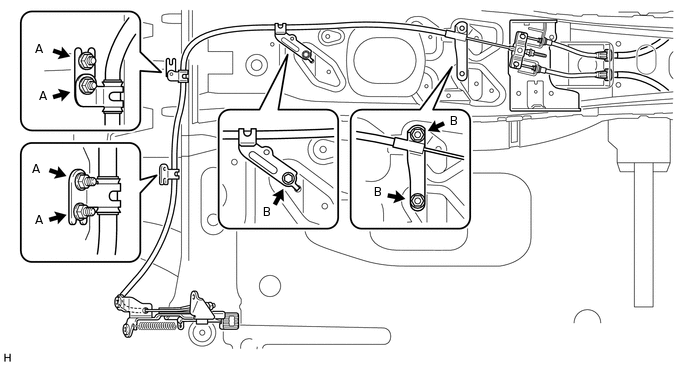

    3. Install the No. 1 parking brake cable assembly with the 4 nuts and 3 bolts.

      C260200N01

      for nut A

      6.0 N*m

      61 kgf*cm

      53 in.*lbf

      for bolt B

      13 N*m

      127 kgf*cm

      9 ft.*lbf

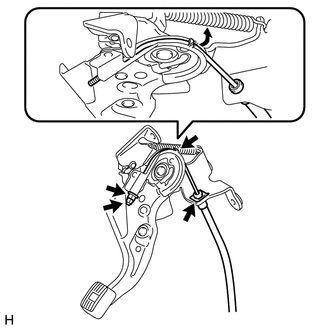

    4. C217118

      Pass the No. 1 parking brake cable through the parking brake pedal.

    5. Install the clip.

    6. Bend the parking brake pedal claw.

    7. Temporarily install the adjusting nut and lock nut to the No. 1 parking brake cable.

  3. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY

    1. Install the parking brake control pedal assembly with the 3 nuts.

      13 N*m

      127 kgf*cm

      9 ft.*lbf

    2. Connect the parking brake switch connector.

  4. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY

    1. Install the transmission floor shift assembly (Click here).

  5. INSTALL CENTER AIRBAG SENSOR ASSEMBLY

    Click hereClick here

  6. INSTALL YAW RATE AND ACCELERATION SENSOR

    Click hereClick hereClick here

  7. INSTALL TURN SIGNAL FLASHER ASSEMBLY

    Click hereClick here

  8. INSTALL REAR CONSOLE BOX ASSEMBLY

    1. Install the rear console box assembly (Click hereClick here).

  9. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    1. Install the lower No. 1 instrument panel airbag assembly (Click hereClick hereClick here).

  10. ADJUST PARKING BRAKE SHOE CLEARANCE AND PARKING BRAKE PEDAL TRAVEL

    Click here

  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click hereClick hereClick hereClick hereClick here).
