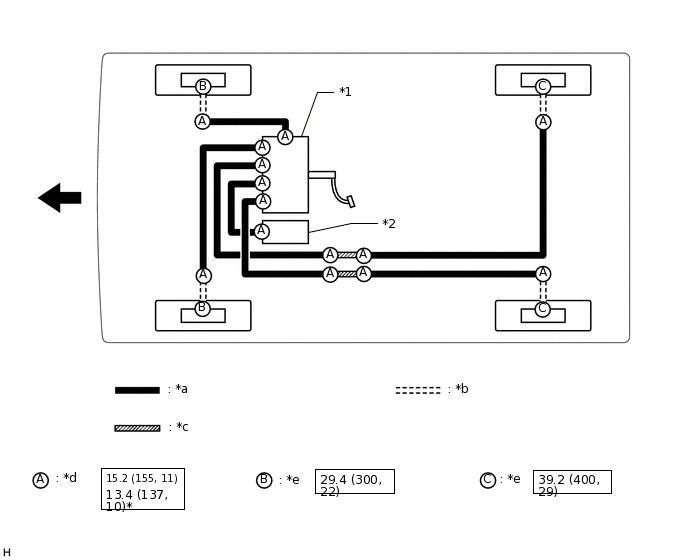

BRAKE LINE SYSTEM DIAGRAM

*1	Brake Booster with Master Cylinder Assembly	*2	Brake Booster Pump Assembly
*a	Brake Line	*b	Flexible Hose
*c	Brake tube Way	*d	Union Nut
*e	Union Bolt	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	*	For use with union nut wrench
	Front	-	-

*1

Brake Booster with Master Cylinder Assembly

*2

Brake Booster Pump Assembly

*a

Brake Line

*b

Flexible Hose

*c

Brake tube Way

*d

Union Nut

*e

Union Bolt

-

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with union nut wrench

Front

-
