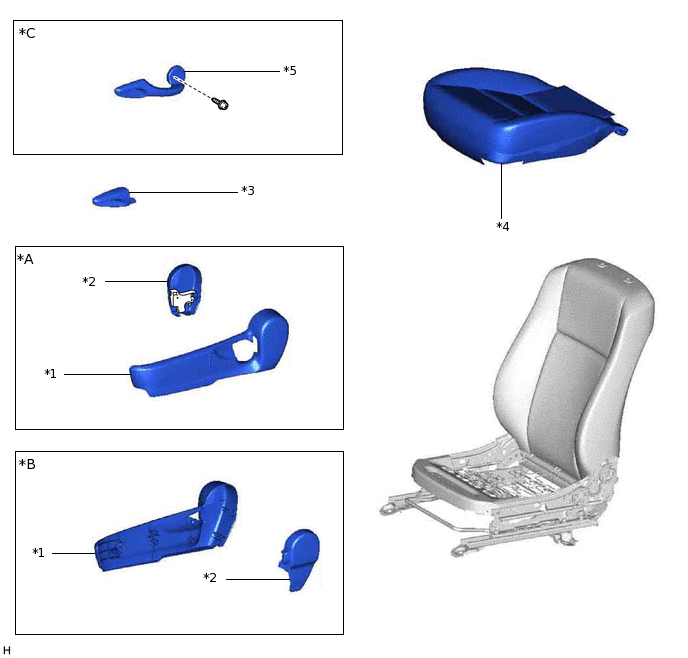

FRONT SEAT CUSHION HEATER(for Sedan) COMPONENTS

*A	for Driver Side	*B	for Front Passenger Side
*C	w/ Vertical Adjuster	-	-
*1	FRONT SEAT CUSHION SHIELD	*2	FRONT SEAT INNER CUSHION SHIELD
*3	RECLINING ADJUSTER RELEASE HANDLE	*4	SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
*5	VERTICAL ADJUSTING HANDLE	-	-

*A

for Driver Side

*B

for Front Passenger Side

*C

w/ Vertical Adjuster

-

*1

FRONT SEAT CUSHION SHIELD

*2

FRONT SEAT INNER CUSHION SHIELD

*3

RECLINING ADJUSTER RELEASE HANDLE

*4

SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

*5

VERTICAL ADJUSTING HANDLE

-

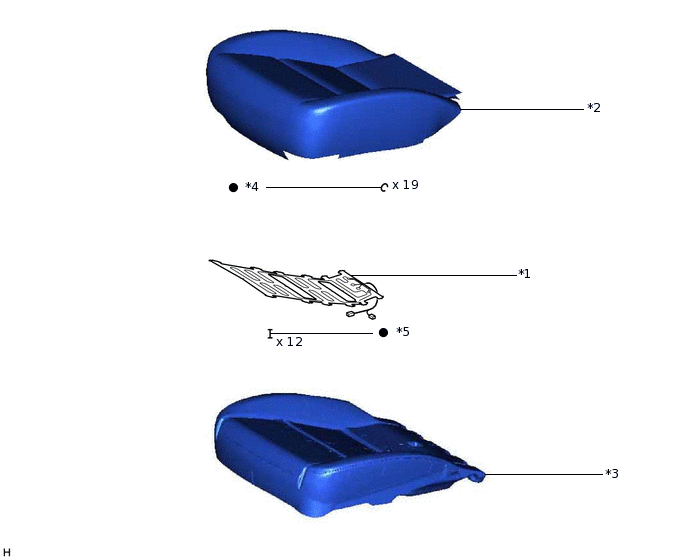

*1	FRONT SEAT CUSHION HEATER ASSEMBLY	*2	SEPARATE TYPE FRONT SEAT CUSHION COVER
*3	SEPARATE TYPE FRONT SEAT CUSHION PAD	*4	HOG RING
*5	TAG PIN	-	-
●	Non-reusable part	-	-
