ECM REMOVAL

PROCEDURE

  1. PRECAUTION

    Note:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click hereClick here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick here

  3. REMOVE BATTERY (for RHD)

    Click here

  4. REMOVE BATTERY CLAMP SUB-ASSEMBLY (for RHD)

    Click here

  5. REMOVE ECM

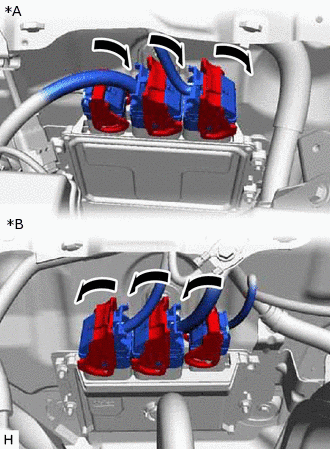

    1. A327018C01

      *A

      for LHD

      *B

      for RHD

      Raise the 3 levers while pushing the locks on the levers to disconnect the 3 ECM connectors.

      Note:

      After disconnecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.

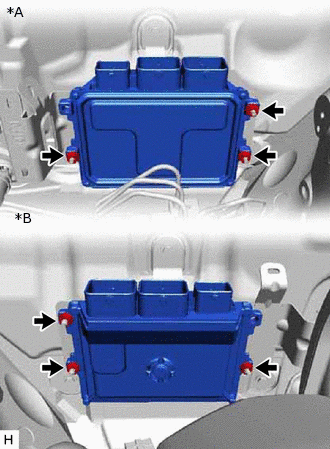

    2. A327019C01

      *A

      for LHD

      *B

      for RHD

      Remove the 3 nuts and ECM.

      Note:

      If the ECM has been struck or dropped, replace it.
