FRONT WIPER RUBBER REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE FRONT WIPER BLADE LH

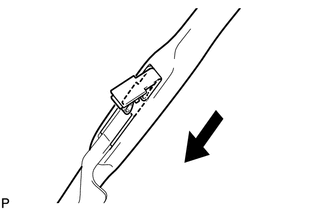

    1. E119836

      Open the wiper blade holder.

    2. Remove the wiper blade as shown in the illustration.

  2. REMOVE WIPER RUBBER LH

    1. Detach the head part (large side) of the wiper rubber from the wiper blade.

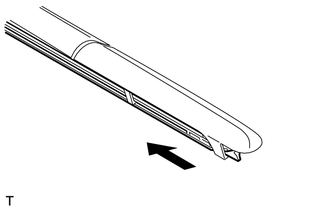

    2. E156180

      Remove the wiper rubber in the direction indicated by the arrow in the illustration.

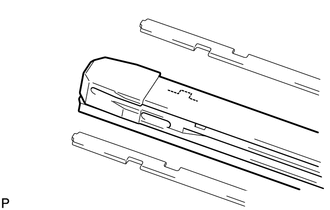

    3. E189964

      Remove the 2 wiper rubber backing plates from the wiper rubber.
