SEAT MEMORY SWITCH REMOVAL

PROCEDURE

1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH

   Click here

2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

   Click here

3. REMOVE FRONT DOOR ASSIST GRIP COVER LH

   Click here

4. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

   Click here

5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

   Click here

6. REMOVE SEAT MEMORY SWITCH

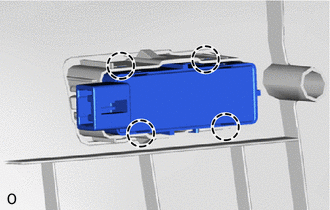

   1. Detach the 4 claws to remove the seat memory switch.
