ECD SYSTEM


  1. FUNCTION


    1. The ECM calculates 2 types of values: the basic injection volume and the maximum injection volume. Then, the ECM compares the basic and maximum injection volumes, and determines the smaller calculated value to be the final injection volume.

      Figure 1. Basic Injection Volume

      B0020MVE10

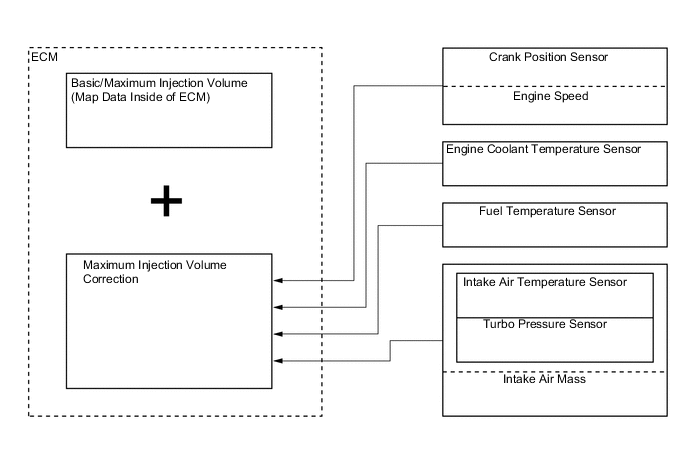

      Figure 2. Maximum Injection Volume

      B0020BBE01

      Figure 3. Final Injection Volume Decision

      B0020OQE01
