SIDE TURN SIGNAL LIGHT ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE

  1. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY

    1. Connect the connector.

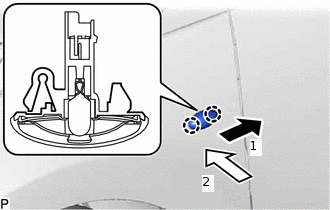

    2. E295236E01

      Engage the 2 claws to install the side turn signal light assembly as indicated by the arrows, in the order shown in the illustration.
