CRUISE CONTROL SYSTEM

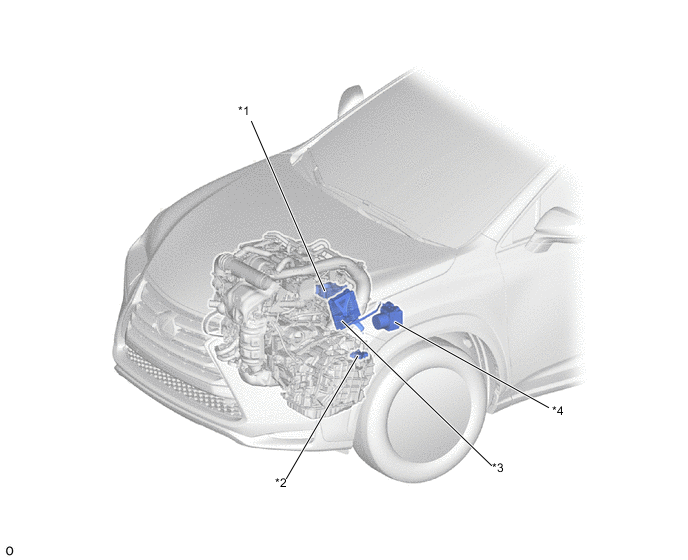

Figure 1. 8AR-FTS Engine

B002FV2C01
*1 Throttle Body with Motor Assembly *2 Park/Neutral Position Switch Assembly
*3 ECM *4 Skid Control ECU

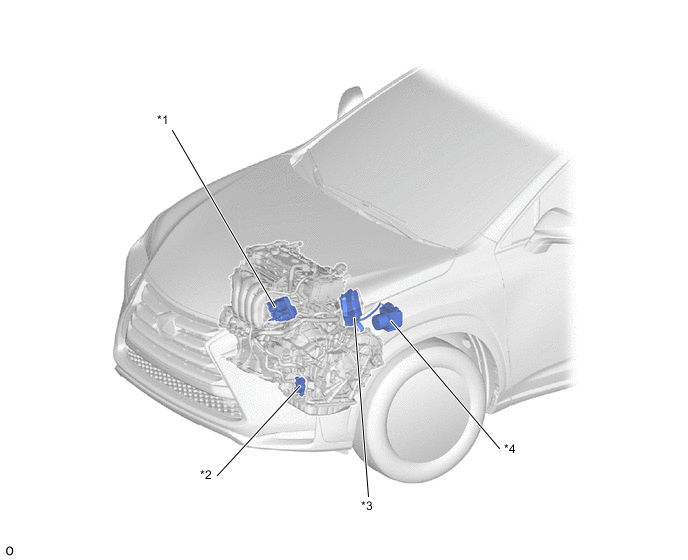

Figure 2. 3ZR-FAE Engine

B002FFDC01
*1 Throttle Body with Motor Assembly *2 Park/Neutral Posistion Switch Assembly
*3 ECM *4 Skid Control ECU

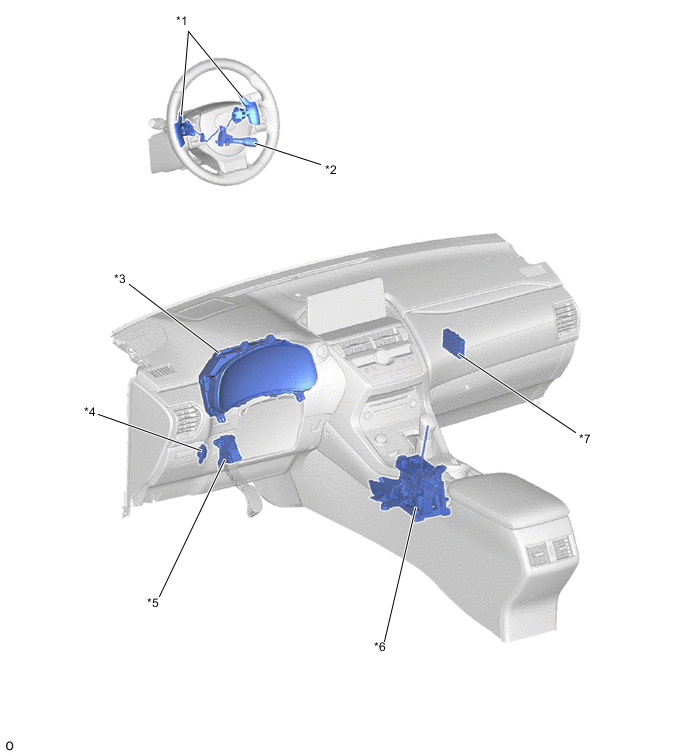

B002FTBC01
*1 Transmission Shift Switch Assembly *2

Cruise Control Main Switch


  • ON-OFF Button

  • +RES Switch

  • -SET Switch

  • CANCEL Switch
*3

Combination Meter Assembly


  • Cruise Control Indicator Light

  • Cruise Control SET Indicator Light

 *4 Stop Light Switch Assembly
*5 Accelerator Pedal Sensor Assembly *6

Transmission Floor Shift Assembly


  • Transmission Control Switch
*7 Central Gateway ECU (Network Gateway ECU) - -
