CLOCK SYSTEM PARTS LOCATION

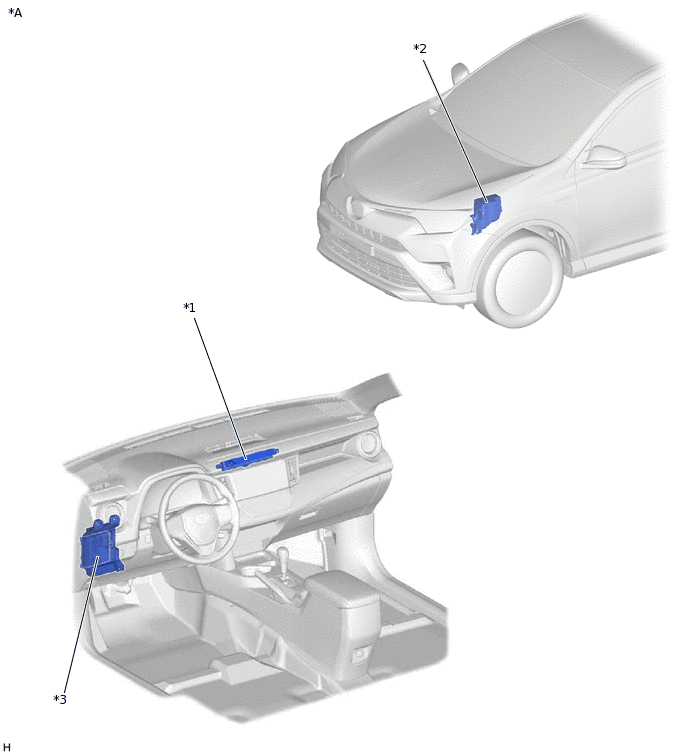

ILLUSTRATION

E341607C01

*A

for LHD

-

-

*1

TELLTALE LIGHT ASSEMBLY (CLOCK)

*2

ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY

- ECU-B NO. 1 FUSE

*3

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ACC FUSE

-

-

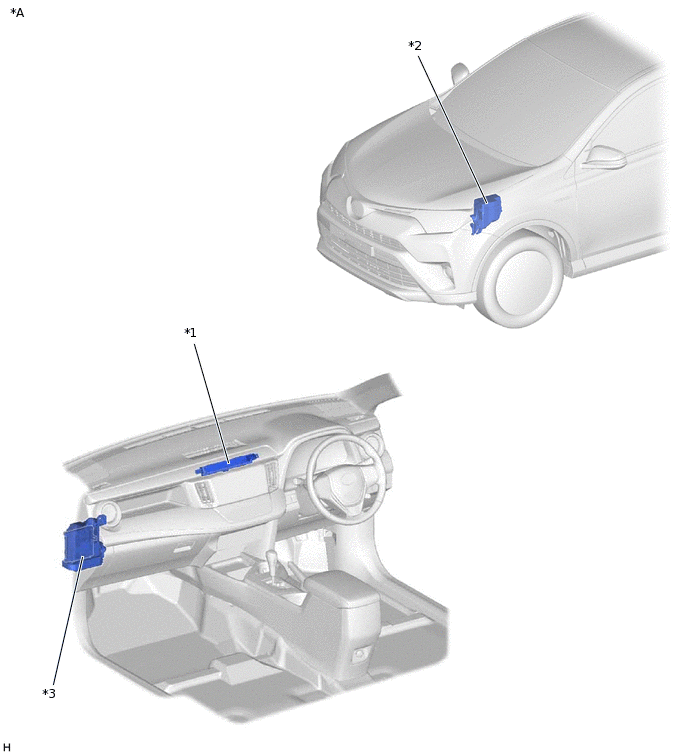

ILLUSTRATION

E341608C01

*A

for RHD

-

-

*1

TELLTALE LIGHT ASSEMBLY (CLOCK)

*2

ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY

- ECU-B NO. 1 FUSE

*3

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ACC FUSE

-

-
