PARKING BRAKE PEDAL COMPONENTS

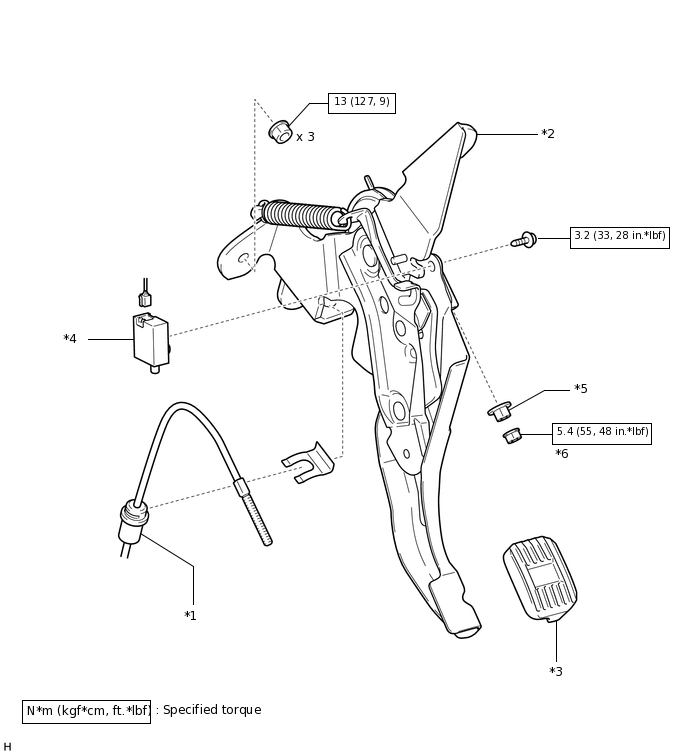

ILLUSTRATION
*1 |
NO. 1 PARKING BRAKE CABLE ASSEMBLY |
*2 |
PARKING BRAKE CONTROL PEDAL ASSEMBLY |
*3 |
PARKING PEDAL PAD |
*4 |
PARKING BRAKE SWITCH ASSEMBLY |
*5 |
ADJUSTING NUT |
*6 |
LOCK NUT |
ILLUSTRATION
*1 |
NO. 1 PARKING BRAKE CABLE ASSEMBLY |
*2 |
PARKING BRAKE CONTROL PEDAL ASSEMBLY |
*3 |
TRANSMISSION FLOOR SHIFT ASSEMBLY |
*4 |
YAW RATE AND ACCELERATION SENSOR |
*5 |
NO. 1 PARKING BRAKE CABLE NO. 3 CLAMP |
*6 |
PARKING BRAKE EQUALIZER |
*7 |
ADJUSTING NUT |
*8 |
LOCK NUT |
