BACK DOOR OUTSIDE GARNISH(for Lower Side) REMOVAL

PROCEDURE

  1. REMOVE LOWER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

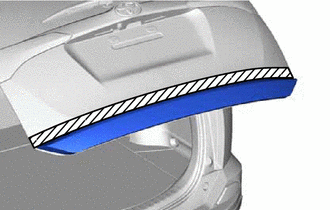

    1. B432917C01
      V100155

      Protective Tape

      Put protective tape around the lower back door outside garnish sub-assembly.

    2. B426437

      Detach the 4 claws and 10 clips and remove the lower back door outside garnish sub-assembly.

  2. REMOVE NO. 2 BACK DOOR GARNISH RETAINER

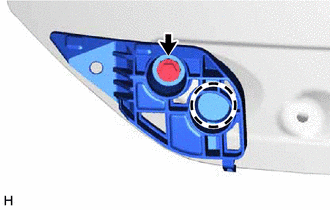

    1. B427311

      Remove the screw.

    2. Detach the claw and remove the No. 2 back door garnish retainer.

  3. REMOVE NO. 1 BACK DOOR GARNISH RETAINER

    Tip:

    Use the same procedure described for the No. 2 back door garnish retainer.

  4. REMOVE NO. 3 BACK DOOR GARNISH RETAINER

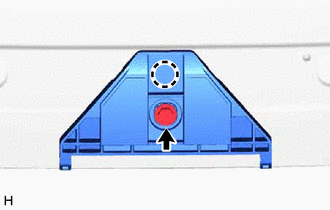

    1. B427312

      Remove the screw.

    2. Detach the claw and remove the No. 3 back door garnish retainer.
