LANE DEPARTURE ALERT SWITCH(for RHD) INSPECTION

PROCEDURE

  1. INSPECT LANE DEPARTURE ALERT MAIN SWITCH

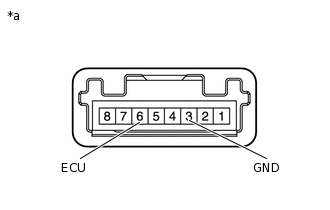

    1. E334711C01

      *a

      Component without harness connected

      (Lane Departure Alert Main Switch)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      6 (ECU) - 3 (GND)

      LDA switch pushed

      Below 1 Ω

      6 (ECU) - 3 (GND)

      LDA switch not pushed

      10 kΩ or higher

      If the result is not as specified, replace the lane departure alert main switch.
