ENGINE UNIT


  1. CONSTRUCTION


    1. An aluminum die-cast timing chain cover sub-assembly is used.

    2. The timing chain cover sub-assembly has an integrated construction consisting of a cooling system (water pump and water passage). Thus, the number of parts has been reduced for weight reduction.

    3. The oil passage is provided on the timing chain cover sub-assembly for simplification.

    4. The timing chain oil jet is provided in the timing chain cover sub-assembly. The timing chain oil jet lubricates the timing chain.

    5. A drive belt tension gauge is provided on the timing chain cover sub-assembly.

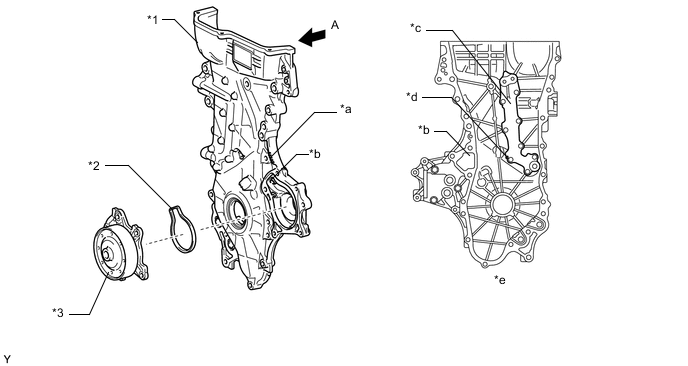

      A01GGVAC01
      *1 Timing Chain Cover Sub-assembly *2 Water Pump Gasket
      *3 Water Pump - -
      *a Drive Belt Tension Gauge *b Water Passage
      *c Oil Passage *d Timing Chain Oil Jet
      *e View from A - -
