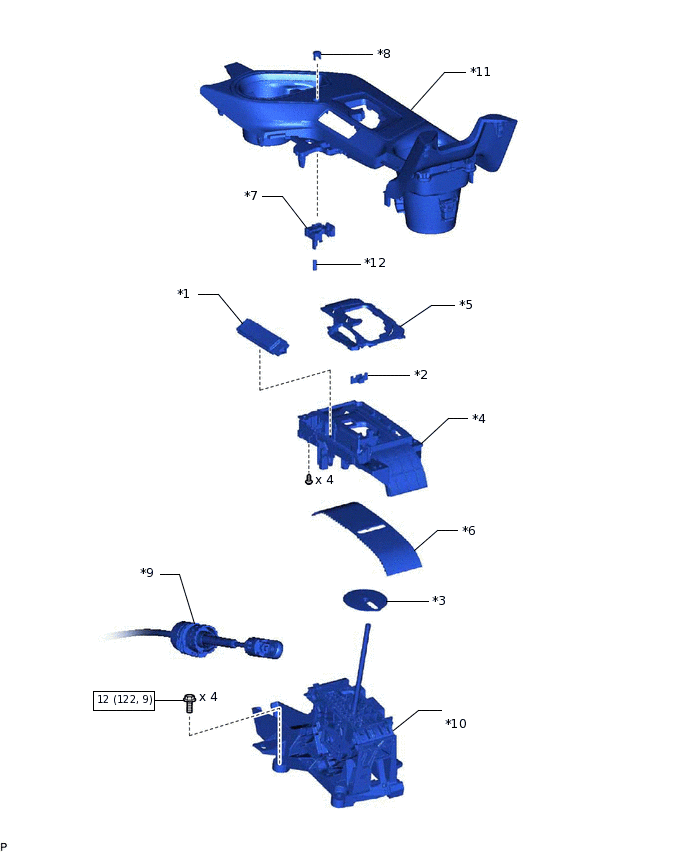

SHIFT LEVER COMPONENTS
ILLUSTRATION
*1 |
CONTROL POSITION INDICATOR PLATE |
*2 |
INDICATOR LIGHT |
*3 |
NO. 2 POSITION INDICATOR SLIDE COVER |
*4 |
POSITION INDICATOR HOUSING |
*5 |
POSITION INDICATOR LENS |
*6 |
POSITION INDICATOR SLIDE COVER |
*7 |
SHIFT LOCK RELEASE BUTTON |
*8 |
SHIFT LOCK RELEASE BUTTON COVER |
*9 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
*10 |
TRANSMISSION FLOOR SHIFT ASSEMBLY |
*11 |
UPPER CONSOLE PANEL SUB-ASSEMBLY |
*12 |
SPRING |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
