FRONT CONSOLE BOX(for Sedan) REMOVAL

PROCEDURE

  1. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

    1. B350648C01

      *a

      Guide <A>

      *b

      Guide <B>

      Pull the front No. 1 console box insert in the direction indicated by the arrow (1) to disengage the claw, 3 clips and guide <A>.

    2. Pull the front No. 1 console box insert in the direction indicated by the arrow (2) to disengage the guide <B> and remove the front No. 1 console box insert.

  2. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    1. B350650C01

      *a

      Guide <A>

      *b

      Guide <B>

      Pull the front No. 2 console box insert in the direction indicated by the arrow (1) to disengage the claw, 3 clips and guide <A>.

    2. Pull the front No. 2 console box insert in the direction indicated by the arrow (2) to disengage the guide <B> and remove the front No. 2 console box insert.

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)

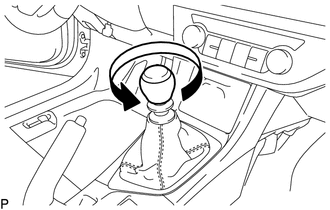

    1. B350652

      Turn the shift lever knob sub-assembly counterclockwise and remove the shift lever knob sub-assembly.

  4. REMOVE SHIFTING HOLE BEZEL (for Manual Transaxle)

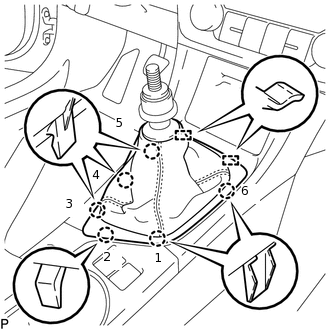

    1. B350654N01

      Disengage the 6 claws in the order shown in the illustration.

    2. Disengage the 2 guides and remove the shifting hole bezel.

  5. REMOVE SHIFTING HOLE BEZEL (for CVT)

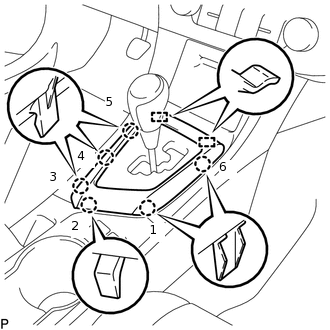

    1. B350655N01

      Disengage the 6 claws in the order shown in the illustration.

    2. Disengage the 2 guides and remove the shifting hole bezel.

  6. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

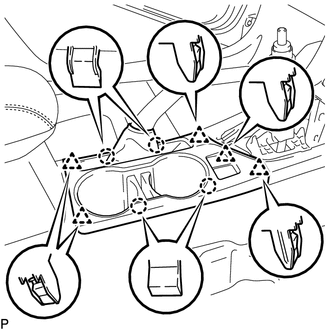

    1. B350656

      Disengage the 4 claws and 5 clips.

    2. Disconnect each connector and remove the upper console panel sub-assembly.

  7. REMOVE UPPER CONSOLE PANEL

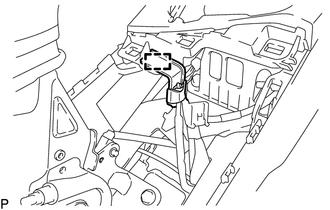

    1. B350657

      Disengage the clamp.

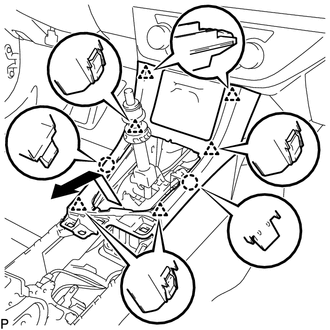

    2. B350658

      Disengage the 2 claws and 6 clips and remove the upper console panel as shown in the illustration.

  8. REMOVE CONSOLE BOX CARPET

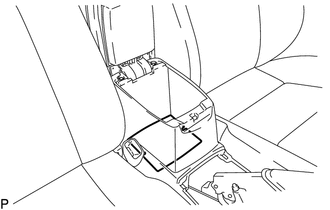

    1. B350661

      Remove the console box carpet.

  9. REMOVE INSTRUMENT PANEL BOX ASSEMBLY

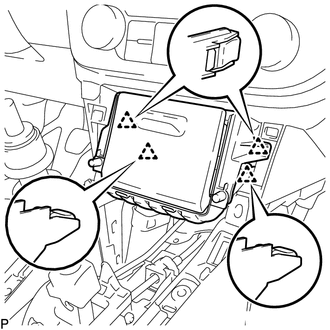

    1. B350660

      Disengage the 4 clips.

    2. Disconnect each connector.

    3. Disengage the clamp and remove the instrument panel box assembly.

  10. REMOVE REAR CONSOLE BOX ASSEMBLY

    1. for Manual Transaxle:

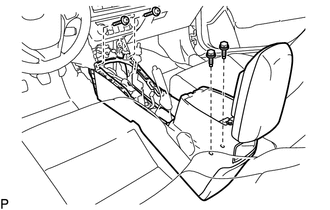

      1. B350662

        Remove the 2 bolts and 2 screws.

    2. for CVT:

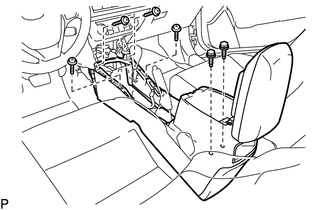

      1. B350663

        Remove the 2 bolts and 4 screws.

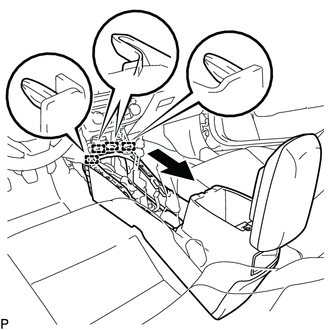

    3. B350666

      Disengage the 4 guides and remove the rear console box assembly as shown in the illustration.

    4. w/ Power Outlet Socket:

      1. Disconnect the connector.
