BRAKE CONTROL SYSTEM


  1. CONSTRUCTION


    1. A non-contact type brake pedal stroke sensor assembly is used.

    2. This sensor detects the extent of the brake pedal stroke and transmits it to the skid control ECU.

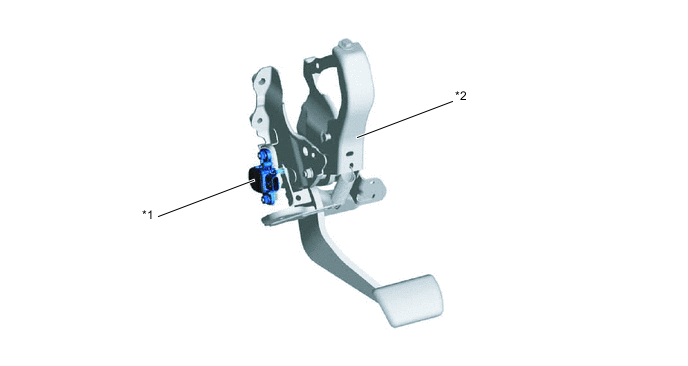

      A01RXRCC01
      *1 Brake Pedal Stroke Sensor assembly *2 Brake Pedal Support Assembly
