FRONT SEAT ASSEMBLY(for Power Seat) REASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. INSTALL FRONT SEAT WIRE LH

    1. B340397

      Attach the 6 clamps to install the front seat wire LH.

    2. Connect the 3 connectors.

  2. INSTALL SEAT ADJUSTER COVER CAP

    1. Install the 2 seat adjuster cover caps to the separate type front seat cushion spring assembly LH.

  3. INSTALL FRONT OUTER SEAT CUSHION EDGE PROTECTOR LH

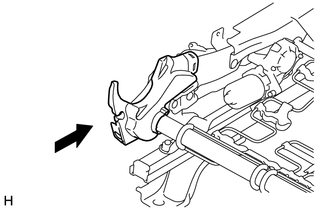

    1. B341217

      Install the front outer seat cushion edge protector LH in the direction indicated by the arrow in the illustration.

  4. INSTALL FRONT INNER SEAT CUSHION EDGE PROTECTOR LH

    Tip:

    Use the same procedure described for the front outer seat cushion edge protector LH.

  5. INSTALL FRONT LOWER SEAT CUSHION SHIELD LH

    1. Attach the clip to install the front lower seat cushion shield LH.

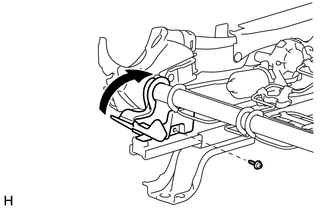

    2. B433042

      Attach the hook in the direction indicated by the arrow in the illustration.

    3. Install the screw.

  6. INSTALL FRONT LOWER SEAT CUSHION SHIELD RH

    Tip:

    Use the same procedure described for the front lower seat cushion shield LH.

  7. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH

    1. Install the seat belt anchor plate.

    2. B340468

      Install the front seat inner belt assembly LH with the nut.

      42 N*m

      428 kgf*cm

      31 ft.*lbf

    3. Attach the 2 clamps.

    4. B340396C01

      *1

      Wire Harness Clamp

      *2

      Connector Clamp

      w/o Occupant Classification System:

      Attach the 2 wire harness clamps and connector clamp.

    5. B341343C01

      *1

      Wire Harness Clamp

      *2

      Connector Clamp

      w/ Occupant Classification System:

      Attach the 2 wire harness clamps and connector clamp.

  8. INSTALL SEAT POSITION AIRBAG SENSOR (w/ Occupant Classification System)

    Click here

  9. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY LH (w/ Seat Heater System)

    Click here

  10. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER

    1. Set the separate type front seat cushion cover in place.

    2. Using hog ring pliers, install the separate type front seat cushion cover to the separate type front seat cushion pad with 21 new hog rings as shown in the illustration.

      Note:

      • Be careful not to damage the separate type front seat cushion cover.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.

      Tip:

      Install the hog rings at the cutouts if they are there.

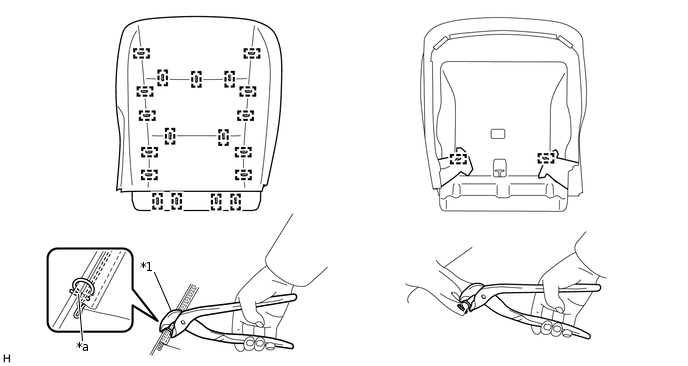

      B340469C01

      *1

      Hog Ring Pliers

      -

      -

      *a

      Cutout

      -

      -

  11. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

    1. Attach the 9 hooks to install the separate type front seat cushion cover with pad.

      B343096
    2. B340395C01

      *1

      Wire Harness Clamp

      *2

      Connector Clamp

      w/ Seat Heater System:

      1. Attach the 3 wire harness clamps and connector clamp to connect the seat cushion heater wire.

      2. Connect the connector.

  12. INSTALL FRONT NO. 2 SEAT WIRE LH

    B340394

    1. Attach the 2 clamps to install the front No. 2 seat wire LH.

    2. Connect the 2 connectors.

  13. INSTALL FRONT SEAT AIRBAG ASSEMBLY LH

    Click here

  14. INSTALL SEATBACK FELT

    1. Install the seatback felt to the separate type front seatback spring assembly LH.

  15. INSTALL SEPARATE TYPE FRONT SEATBACK PAD

    1. Install the separate type front seatback pad to the separate type front seatback spring assembly LH.

  16. INSTALL FRONT SEATBACK HEATER ASSEMBLY LH (w/ Seat Heater System)

    Click here

  17. INSTALL SEPARATE TYPE FRONT SEATBACK COVER

    1. Set the separate type front seatback cover in place.

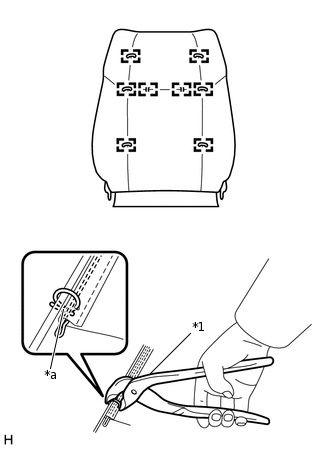

    2. B340470C04

      *1

      Hog Ring Pliers

      *a

      Cutout

      Using hog ring pliers, install the separate type front seatback cover to the separate type front seatback pad with 8 new hog rings as shown in the illustration.

      Note:

      • Be careful not to damage the separate type front seatback cover.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.

      Tip:

      Install the hog rings at the cutouts if they are there.

    3. Pass the separate type front seatback cover bracket through the separate type front seatback pad.

    4. for Dual Type:

      1. Install the 2 nuts.

        5.5 N*m

        56 kgf*cm

        49 in.*lbf

    5. for Single Type:

      1. Install the nut.

        5.5 N*m

        56 kgf*cm

        49 in.*lbf

    6. Close the 2 fasteners.

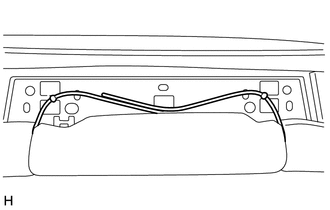

    7. B340871

      Pull the straps to tighten them and confirm that there is a protrusion visible on each side.

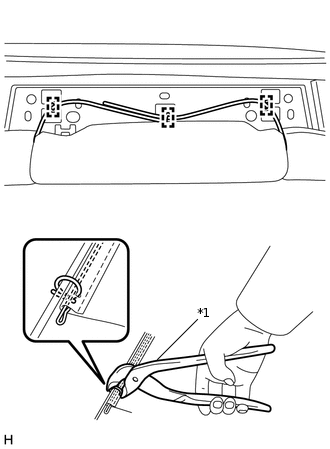

    8. B338257C03

      *1

      Hog Ring Pliers

      Using hog ring pliers, connect the straps of the separate type front seatback cover to the separate type front seatback spring assembly LH with 3 new hog rings as shown in the illustration.

      Note:

      • Be careful not to damage the separate type front seatback cover.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the straps of the separate type front seatback cover.

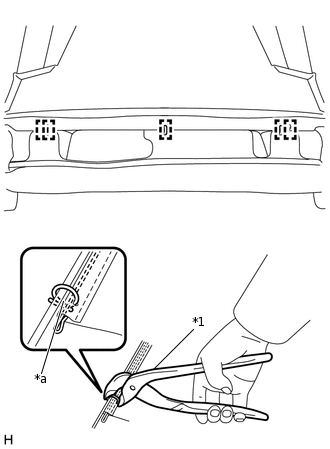

    9. B338256C01

      *1

      Hog Ring Pliers

      *a

      Cutout

      Using hog ring pliers, install the separate type front seatback cover to the separate type front seatback spring LH with 5 new hog rings as shown in the illustration.

      Note:

      • Be careful not to damage the separate type front seatback cover.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the straps of the separate type front seatback cover.

      Tip:

      Install the hog rings at the cutouts if they are there.

  18. INSTALL FRONT SEAT HEADREST SUPPORT

    1. Attach the 4 claws to install the 2 front seat headrest supports.

  19. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

    1. B340402

      Install the separate type front seatback assembly with the 4 bolts.

      42 N*m

      428 kgf*cm

      31 ft.*lbf

    2. B340401

      Attach the 2 hooks.

    3. B340391C01

      *1

      Fastener

      Attach the fastener to connect the wire harness of the front seat airbag assembly LH.

    4. B340390C01

      *1

      Wire Harness Clamp

      *2

      Connector Clamp

      Attach the 4 wire harness clamps and connector clamp.

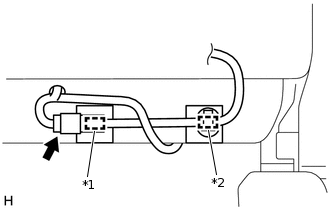

    5. B340392C08

      *1

      Connector Clamp

      *2

      Wire Harness Clamp

      w/ Seat Heater System:

      1. Connect the connector.

      2. Attach the wire harness clamp and connector clamp.

    6. Connect the rubber band.

    7. B340388

      Connect the connector and attach the clamp.

  20. INSTALL FRONT INNER SEAT CUSHION SHIELD LH

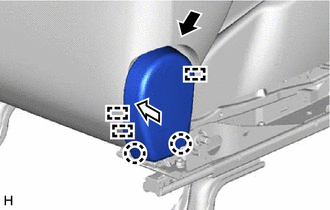

    1. B341215C01
      V100135

      First
      V100136

      Second

      Attach the 3 guides and 2 claws as indicated by the arrows in the order shown in the illustration to install the front inner seat cushion shield LH.

  21. INSTALL POWER SEAT SWITCH ASSEMBLY

    Click here

  22. INSTALL FRONT POWER SEAT SWITCH (w/o Memory)

    Click here

  23. INSTALL POSITION CONTROL ECU AND SWITCH ASSEMBLY (w/ Memory)

    Click here

  24. INSTALL RECLINING POWER SEAT SWITCH KNOB

    1. Attach the 2 claws to install the reclining power seat switch knob.

  25. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

    1. Attach the 2 claws to install the slide and vertical power seat switch knob.

  26. INSTALL FRONT SEAT CUSHION SHIELD LH

    1. B343093

      w/ Memory:

      Connect the 3 connectors and attach the 3 clamps.

    2. B433035

      w/o Memory:

      Connect the 2 connectors and attach the 3 clamps.

    3. Attach the 3 claws to close the cover.

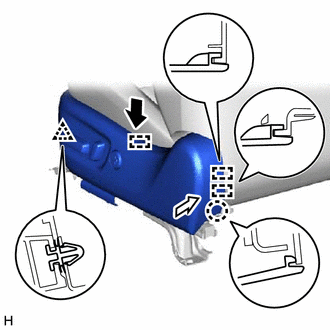

    4. B341214C01
      V100135

      First
      V100136

      Second

      Attach the 3 guides and claw as indicated by the arrows in the order shown in the illustration to install the front seat cushion shield LH.

    5. Attach the clip.

  27. INSTALL FRONT INNER NO. 1 SEAT CUSHION SHIELD LH

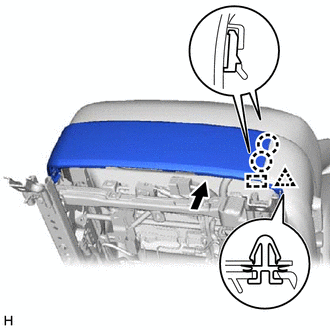

    1. B341218

      Attach the 2 claws, guide and clip in the direction indicated by the arrow shown in the illustration to install the front inner No. 1 seat cushion shield LH.

    2. Attach the claw and install the screw.
