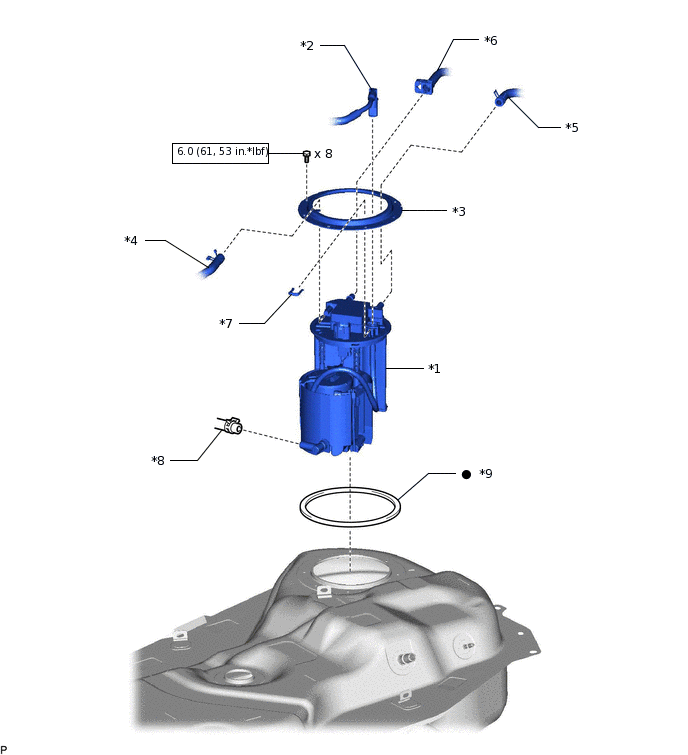

FUEL PUMP(w/o Canister Pump Module) COMPONENTS

*1	FUEL SUCTION TUBE ASSEMBLY	*2	FUEL TANK MAIN TUBE
*3	FUEL TANK VENT TUBE SET PLATE	*4	NO. 1 FUEL EVAPORATION TUBE
*5	CHARCOAL CANISTER OUTLET TUBE	*6	FUEL EVAPORATION TUBE SUB-ASSEMBLY
*7	TUBE JOINT CLIP	*8	FUEL HOSE
*9	GASKET	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part

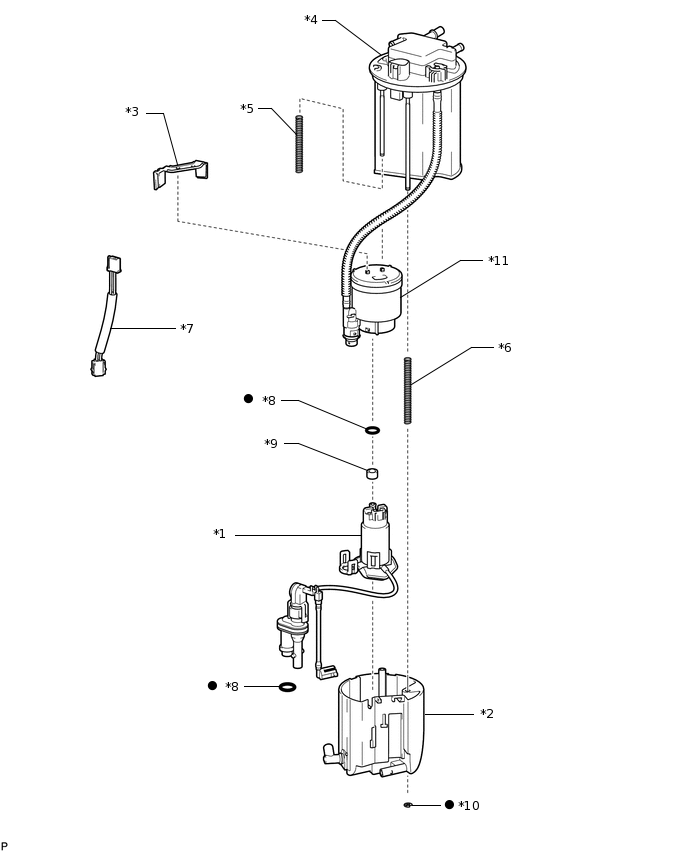

*1	FUEL PUMP ASSEMBLY WITH FILTER	*2	NO. 1 FUEL SUB-TANK
*3	NO. 1 FUEL SUCTION SUPPORT	*4	FUEL SUCTION PLATE SUB-ASSEMBLY
*5	NO. 2 FUEL TANK CUSHION	*6	NO. 3 FUEL TANK CUSHION
*7	FUEL PUMP HARNESS	*8	O-RING
*9	FUEL PUMP SPACER	*10	FUEL TANK PIPE SETTING HOLDER
*11	FUEL FILTER ASSEMBLY	-	-
●	Non-reusable part	-	-

*1

FUEL PUMP ASSEMBLY WITH FILTER

*2

NO. 1 FUEL SUB-TANK

*3

NO. 1 FUEL SUCTION SUPPORT

*4

FUEL SUCTION PLATE SUB-ASSEMBLY

*5

NO. 2 FUEL TANK CUSHION

*6

NO. 3 FUEL TANK CUSHION

*7

FUEL PUMP HARNESS

*8

O-RING

*9

FUEL PUMP SPACER

*10

FUEL TANK PIPE SETTING HOLDER

*11

FUEL FILTER ASSEMBLY

-

●

Non-reusable part

-
