COMPRESSOR COMPONENTS

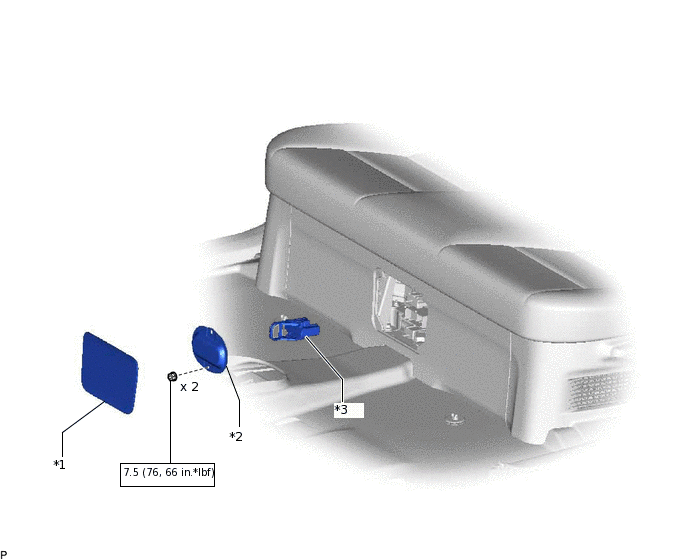

ILLUSTRATION

A326792C17

*1

BATTERY SERVICE HOLE COVER

*2

HYBRID BATTERY SERVICE PLUG COVER

*3

SERVICE PLUG GRIP

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

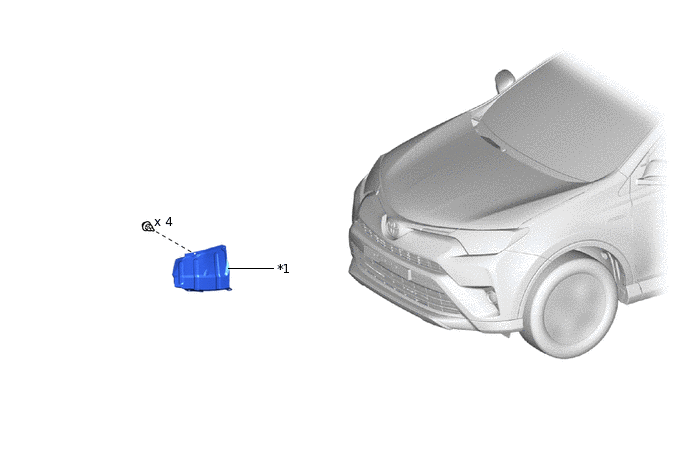

ILLUSTRATION

E334723C02

*1

REAR ENGINE UNDER COVER RH

-

-

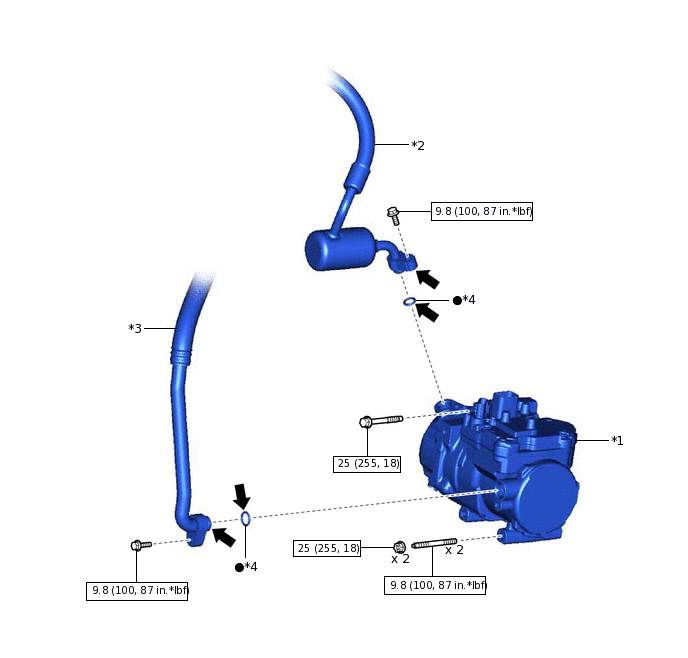

ILLUSTRATION

I110158C05

*1

COMPRESSOR ASSEMBLY WITH MOTOR

*2

DISCHARGE HOSE SUB-ASSEMBLY

*3

SUCTION HOSE SUB-ASSEMBLY

*4

O-RING
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
V100135

Compressor oil ND-OIL 11 or equivalent

-

-
