DAYTIME RUNNING LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE

  1. REMOVE FRONT BUMPER ASSEMBLY

    Click here

  2. REMOVE DAYTIME RUNNING LIGHT ASSEMBLY WITH DAYTIME RUNNING LIGHT BRACKET

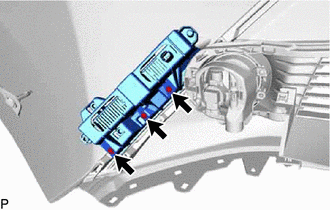

    1. E290983

      Remove the 3 screws to remove the daytime running light assembly with daytime running light bracket.

  3. REMOVE DAYTIME RUNNING LIGHT ASSEMBLY

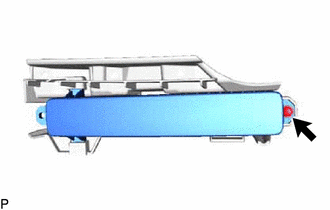

    1. E290984

      Remove the screw.

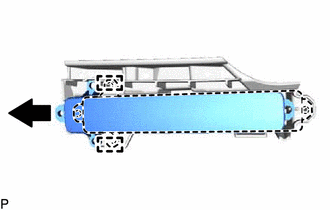

    2. E290985

      Disengage the 2 guides and remove the daytime running light assembly from the daytime running light bracket as shown in the illustration.
