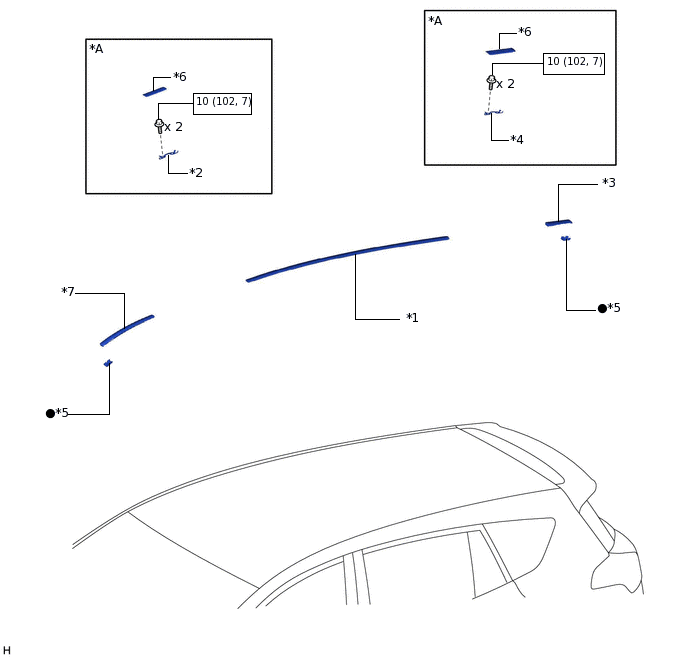

ROOF DRIP SIDE FINISH MOULDING COMPONENTS

*A	w/o Roof Rack	-	-
*1	CENTER NO. 2 ROOF DRIP SIDE FINISH MOULDING LH	*2	FRONT ROOF RACK BRACKET
*3	REAR ROOF DRIP SIDE FINISH MOULDING LH	*4	REAR ROOF RACK BRACKET
*5	ROOF DRIP SIDE FINISH MOULDING CLIP	*6	ROOF DRIP SIDE FINISH MOULDING JOINT COVER LH
*7	ROOF DRIP SIDE FINISH MOULDING LH	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part

*A

w/o Roof Rack

-

*1

CENTER NO. 2 ROOF DRIP SIDE FINISH MOULDING LH

*2

FRONT ROOF RACK BRACKET

*3

REAR ROOF DRIP SIDE FINISH MOULDING LH

*4

REAR ROOF RACK BRACKET

*5

ROOF DRIP SIDE FINISH MOULDING CLIP

*6

ROOF DRIP SIDE FINISH MOULDING JOINT COVER LH

*7

ROOF DRIP SIDE FINISH MOULDING LH

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
